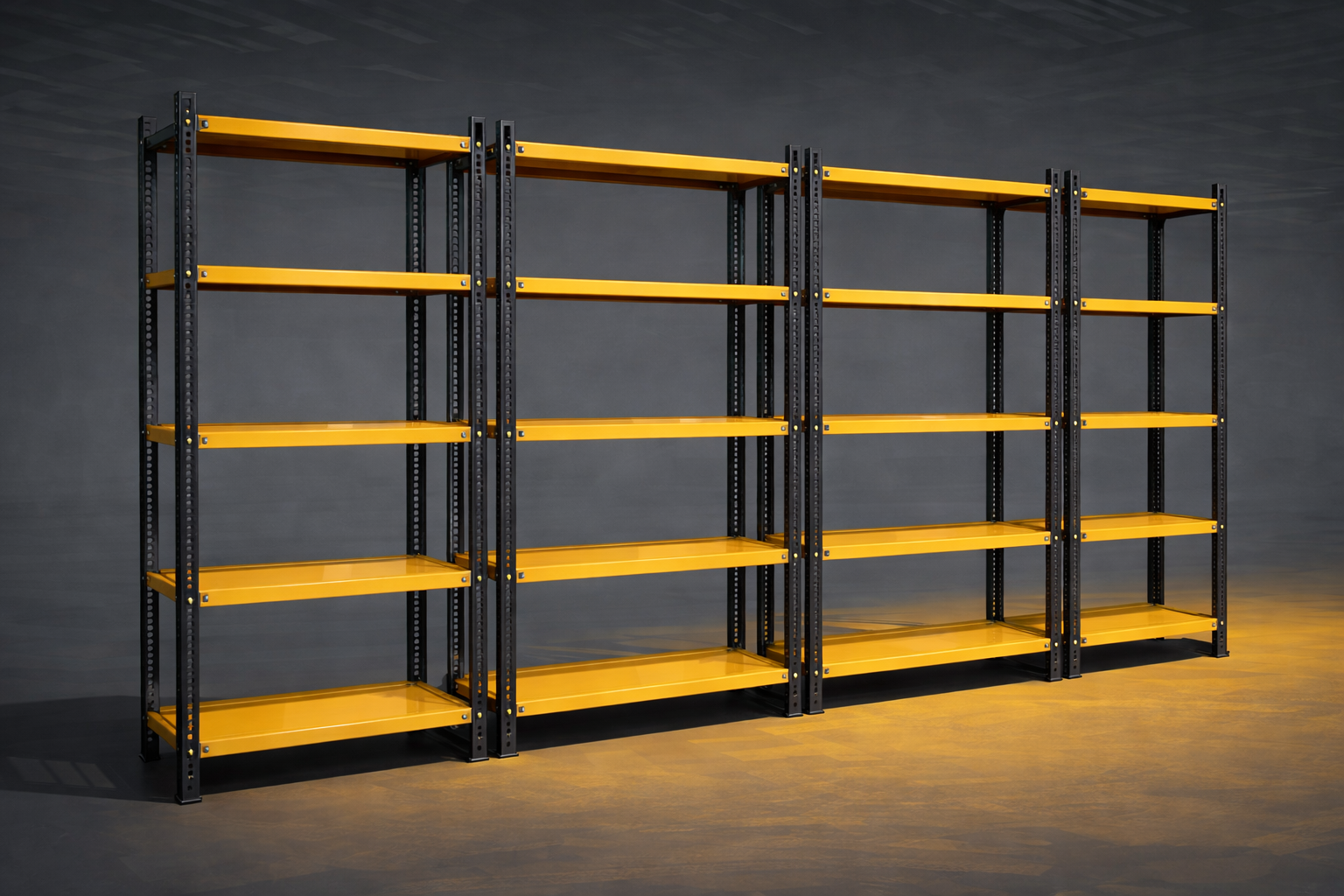

Slotted Angle Rack
Slotted Angle Rack

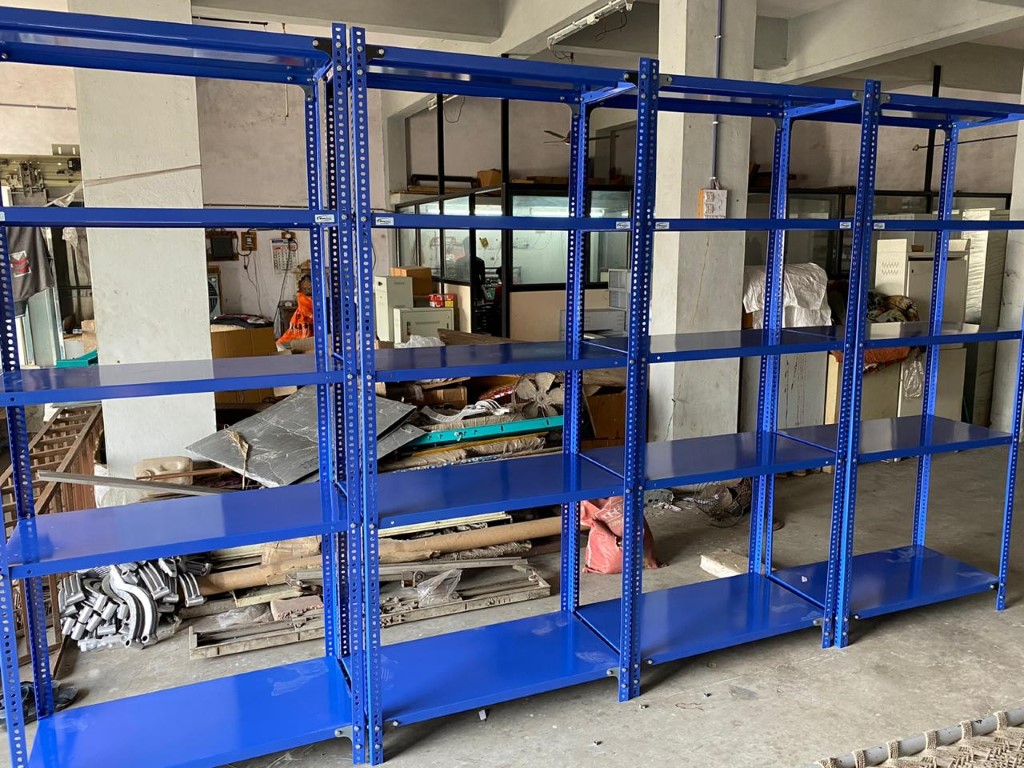

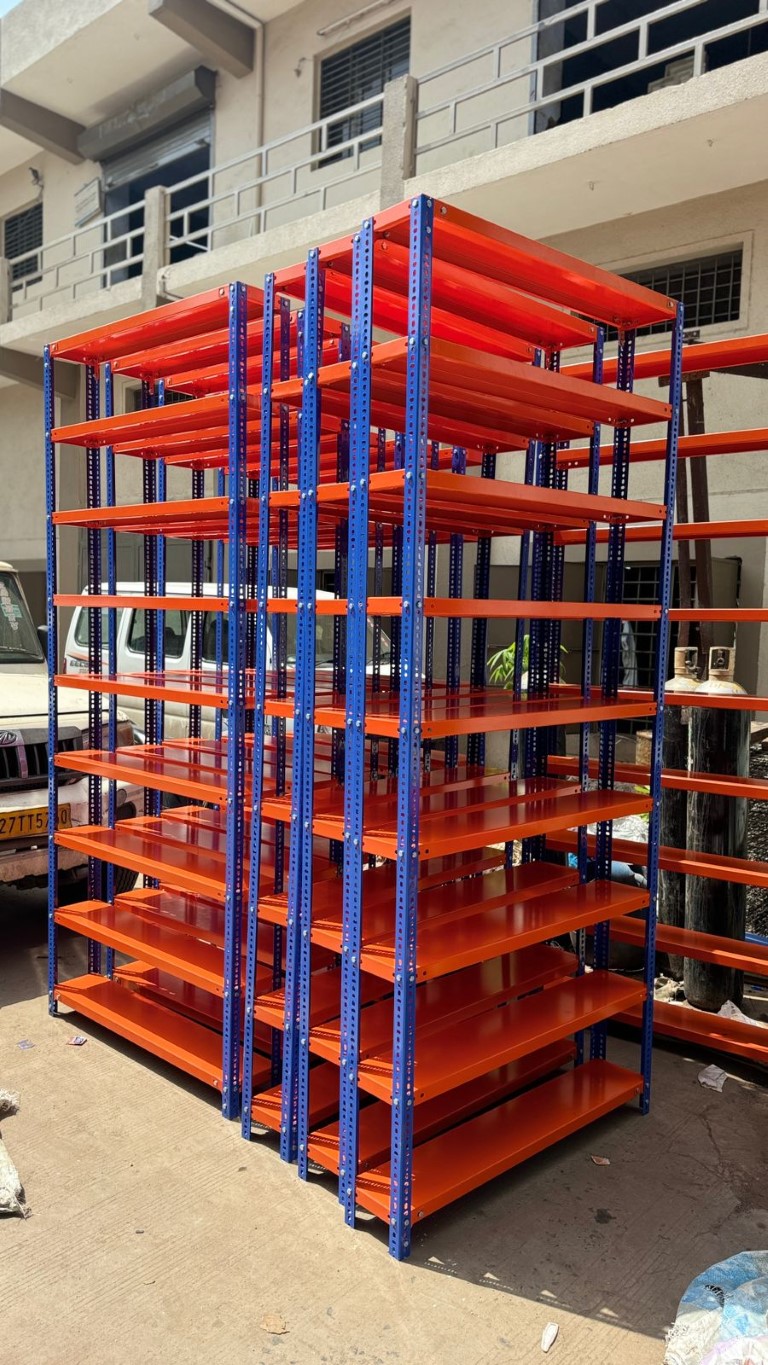

Slotted angle shelving is a flexible, lightweight, yet durable storage solution made from slotted steel angles and metal shelving panels. It is designed for manual loading and storage of small to medium items in numerous industries.
Key Features
- Adjustable Design: Shelves can be adjusted at desired heights for flexible storage.
- Durable Build: Made from high-quality steel with powder coating or galvanized finish for durability.
- Customizable Configurations: Available in various sizes to meet specific storage needs.
- Easy Assembly: Nut-and-bolt construction allows quick installation and dismantling.
- Cost-Effective Solution: Economical for light to medium-duty storage.
Applications in Industries
- Warehouses: Small components, hardware, spare parts
- Workshops: Tools, equipment, and materials storage
- Retail Stores: Display racks, back storage, inventories
- Offices: File storage, documents, stationery
- Archives: Boxes, files, and lightweight storage
- Garages: Automotive components, maintenance equipment
Basic Elements
| Basic Elements | Qty Each Rack | Image |
|---|---|---|
| Slotted Angles | 4 Nos |
|
| Shelves | As per Client Requirement |
|
| Cladding (Side/Back) | As per Client Requirement |
Accessories
| Accessories | Qty Each Rack | Image |
|---|---|---|
| Nut & Bolts | Front and Back Upper and Lower - 32 Nos Each middle Shelve 8 Nos |
|
| Corner Plates | 4 Nos |
|
| Plastic End Caps | 4 Nos |
|
Stalwart Shelve - 900 Series
| Image | Width | Depth | Available Thickness | Load Capacity |
|---|---|---|---|---|
|
900 | 300 | 0.8mm - 1.5mm | 30kg to 100kg |
| 900 | 375 | |||
| 900 | 450 | |||
| 900 | 600 | |||
| 900 | 900 |
Stalwart Shelve - 1000 Series
| Image | Width | Depth | Available Thickness | Load Capacity |
|---|---|---|---|---|
|
1000 | 300 | 0.8mm - 1.5mm | |
| 1000 | 375 | |||
| 1000 | 450 | |||
| 1000 | 600 | |||
| 1000 | 1000 |
Stalwart Shelve - 1200 Series
| Image | Width | Depth | Available Thickness | Load Capacity |
|---|---|---|---|---|
|
1200 | 300 | 0.8mm - 1.5mm | |
| 1200 | 375 | |||
| 1200 | 450 | |||
| 1200 | 600 | |||
| 1200 | 1200 |
Stalwart Shelve - Angle Series
| Image | Width | Depth | Available Thickness | Load Capacity |
|---|---|---|---|---|
|
40x40 , 60x40 | 1800mm | 1.8mm, 2.0mm, 2.5mm | MS / GI / Powder Coated |
| 40x40 , 60x40 | 2000mm | |||
| 40x40 , 60x40 | 2500mm | |||
| 40x40 , 60x40 | 3000mm |
Application Industry
Warehouses
Workshops
Retail Stores
Offices
Archives
Garages
