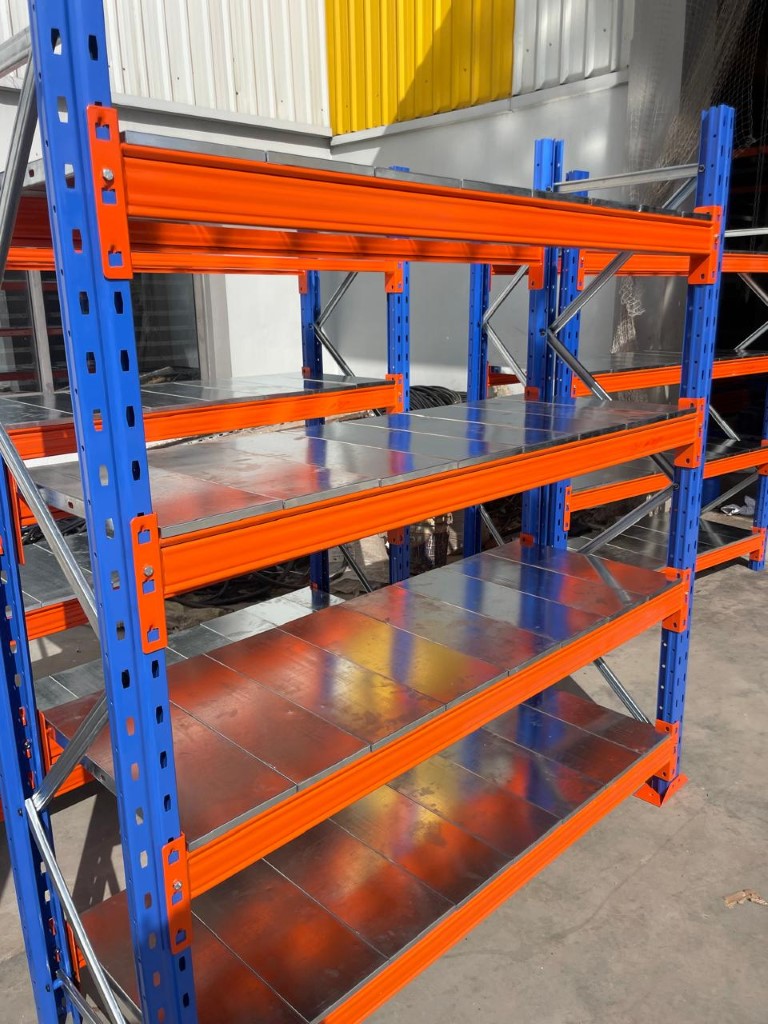

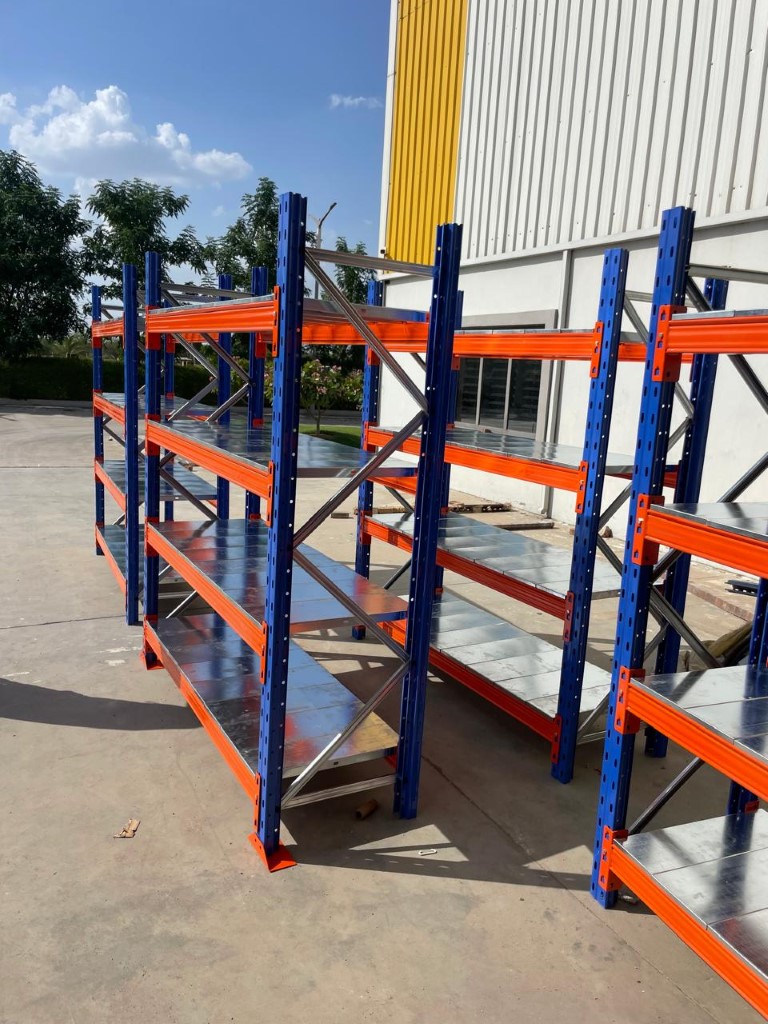

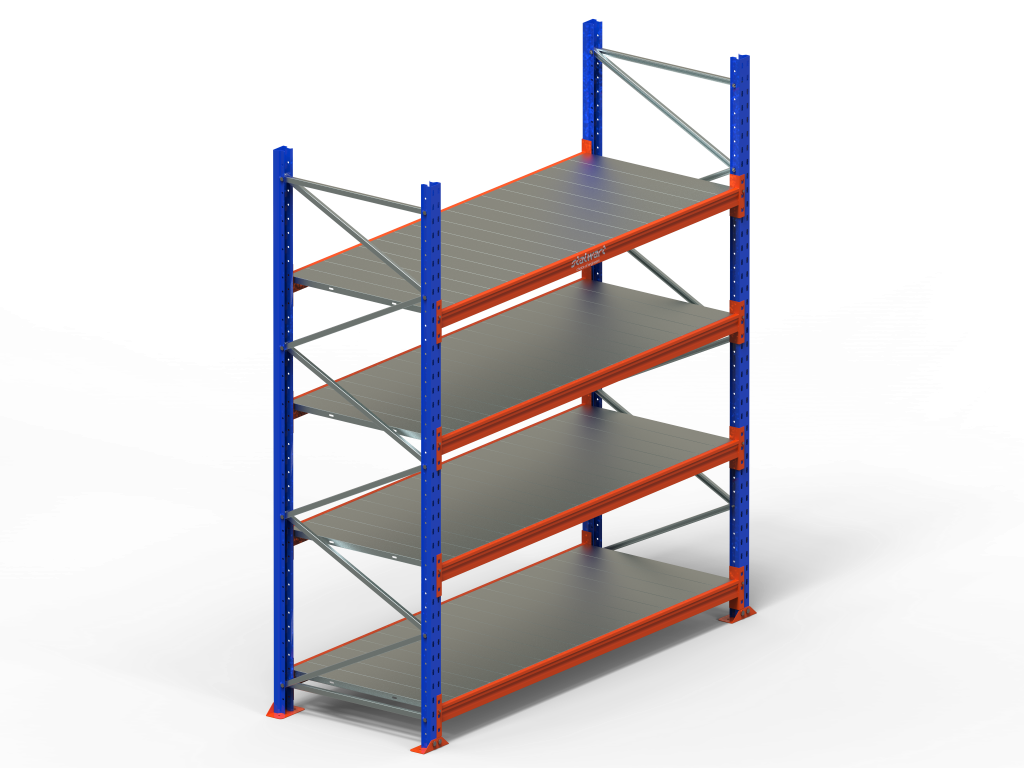

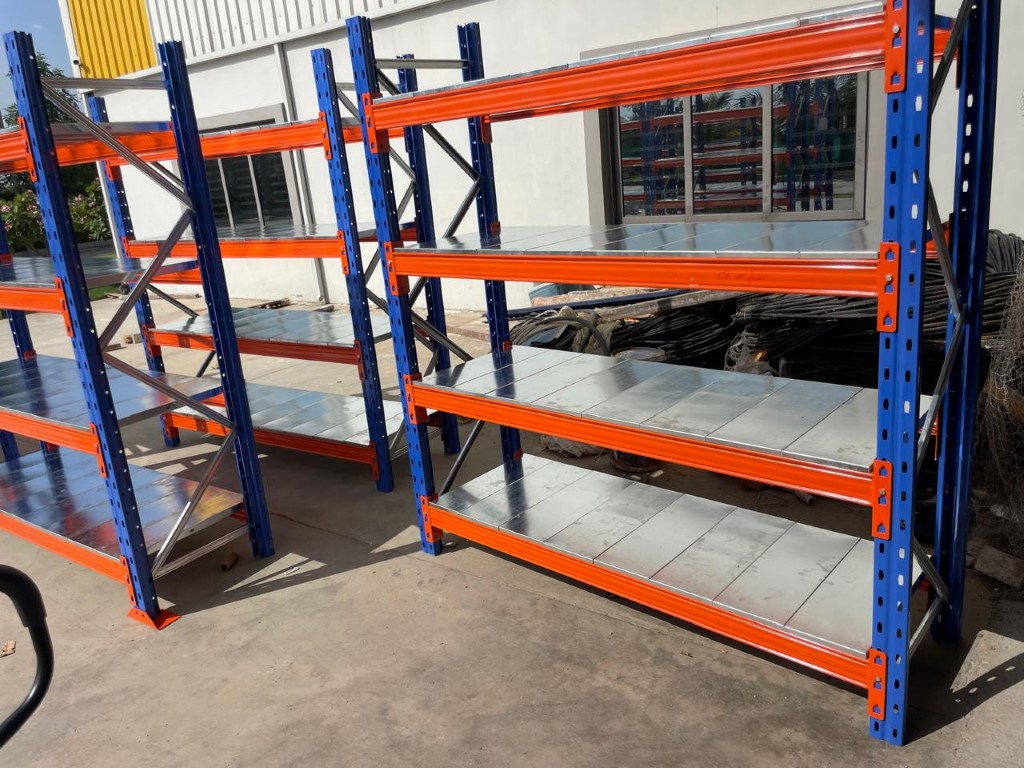

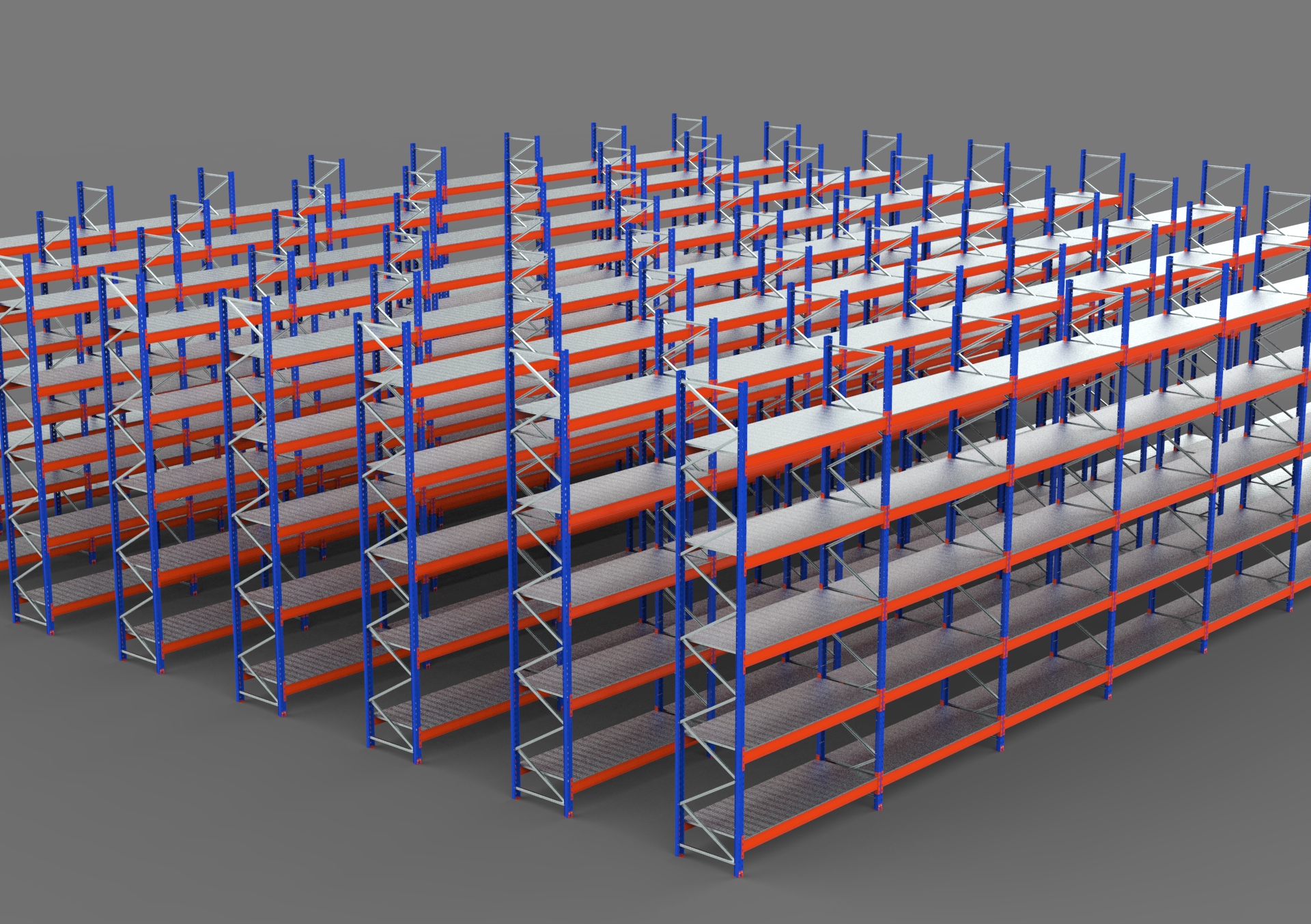

Heavy Duty Rack

STALWART Heavy Duty Racking System is engineered for high-density palletized storage with superior load-bearing capacity. Designed for forklifts and heavy machinery operation, it ensures maximum vertical space utilization and structural safety.

Key Features

High load capacity: 1000–5000 kg per level (UDL)Compatible with forklift, reach -truck, or stacker use
Adjustable beam levels
Modular design allows easy expansion and relocation
Includes safety features: column guards, row spacers, locking pins
Powder-coated or hot-dip galvanized finish available

Category: Racking System

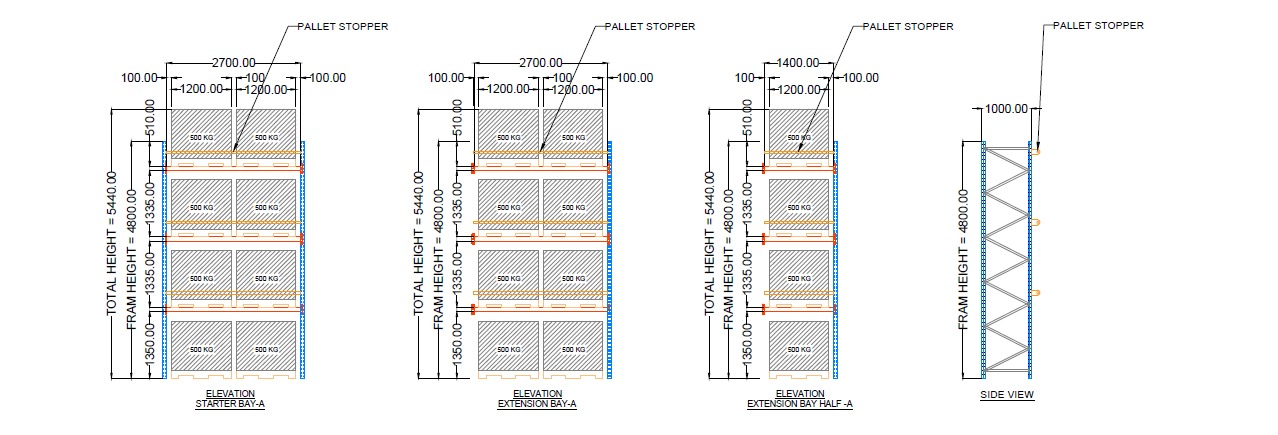

Sizes Available

Width (Beam)	1300mm to 3000mm
Height (Upright)	3000mm to 9000mm
Depth (Decking Panel)	600mm to 1200mm
Levels	As per Client Requirement
Load Capacity	500kg to 5000kg UDL

Basic Elements

Component	Available Sizes / Type	Usage
Upright Frame - 20 Fold	80x65mm, 100x65mm, 110x65mm, 130x65mm	Main vertical structure bearing vertical loads

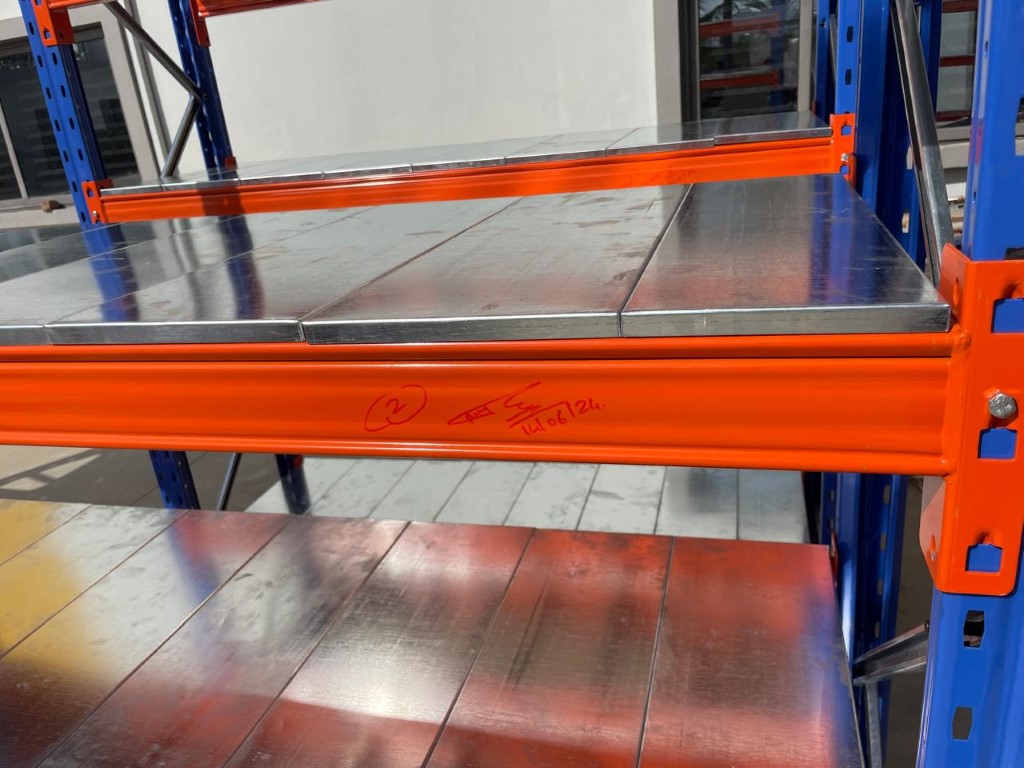

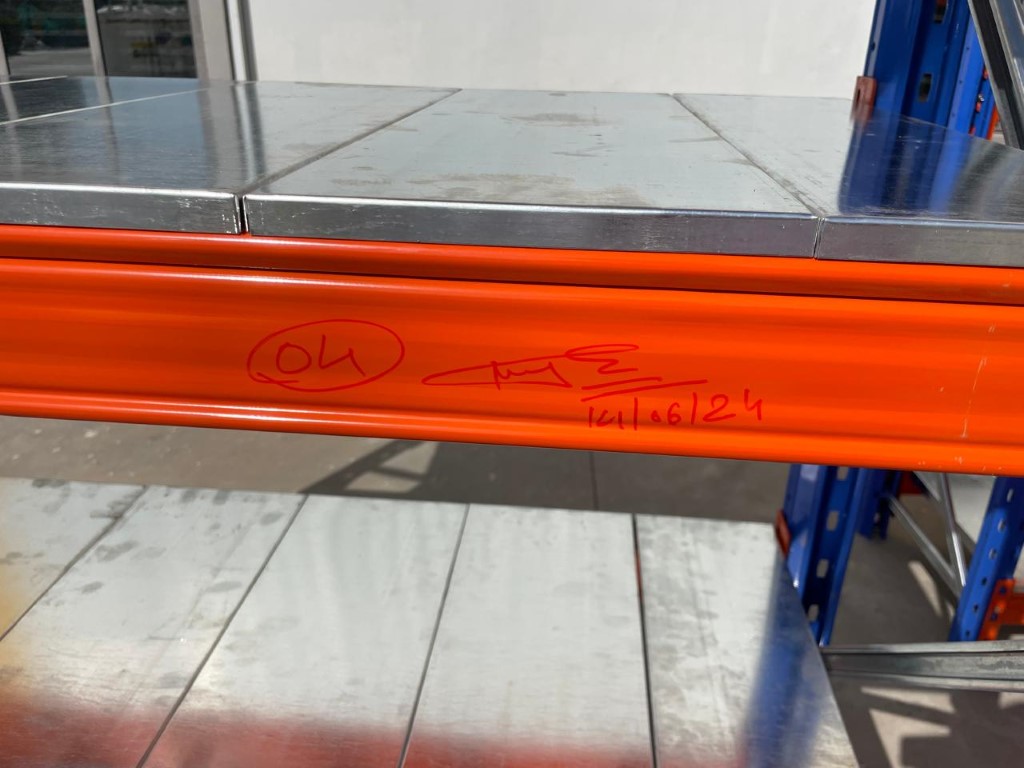

Beam (Box Type) - 34 Fold	90x50mm, 100x50mm, 110x50mm, 120x50mm, 140x50mm, 160x50mm	Horizontal load-bearing member where pallets sit
Beam Bracket	2/4-hook adjustable plate	Connects beams to uprights with high strength
GI Decking Panel - Multi Bend	300mm--1200mm (W), 400–1200mm (D) 1.2mm–1.6mm	Storage surface for goods
Horizontal & Diagonal Bracing -Multi Fold	35 x 15mm, 35 x 18mm, 35 x 25mm, 35 x 31mm	Rack stability and sway control

Accessories

Row Spacer	200 mm, 300 mm	Maintains uniform spacing between back-to-back rows
Base Plate	120x120 mm or 150x150 mm with anchor holes	Anchors upright to floor for structural stability
Side & Back Cladding (optional)	Plain Sheet or perforated	Prevents item fall-through; adds rigidity
Allen Key Bolt For Upright	-	-
Hex Nut and Bolt	-	-
Anchor Fastener	-	-
Rack To Rack Connecting Tie	-	-
Side Cladding (optional)	-	-
Back Cladding (optional)	-	-
Shelf Dividers (optional)	-	-
Top Cap (optional)	-	-
Foot Plate (optional)	-	-

Safety Elements

Column Guard / Upright Guard	400 mm H / 500 mm H / Wrap Type	Protects upright base from forklift impact
Row End Guard	Wrap-around or bolt-on	Prevents forklift damage at row ends
Beam Locking Pin	Spring or pin type	Prevents beam from accidental dislodgement
Top Cap (Optional)	Plastic or MS cap	Protects upright tops; adds a clean finish

Material & Finish

Component	Material	Finish
Uprights & Beams	High-tensile structural steel	11 Tank Powder coated
Decking Panels	GI Steel	Pre Galvanized / Powder coated
Bracing & Accessories	MS / GI	Pre Galvanized / Powder coated

Heavy Duty Storage Rack Manufacturer that Guarantees Quality

Ramdev Steeltech Storage Innovations is the trusted and highly reliable heavy-duty storage rack manufacturer you can rely on. With over years of experience in the storage and material handling industry, we offer durable and high-capacity racking systems.

Our storage capabilities can assist a series of industry types, including warehousing, logistics and retail distribution. Our heavy-duty racks are built under extreme supervision to handle large volumes and heavy loads without compromising on safety and accessibility.

Our Heavy Duty Pallet Racks Manufacturers Adopt Precise Engineering

At Ramdev Steeltech Storage Innovations, our team takes complete care of precise engineering. We make sure to manufacture the racks using high-quality steel. Our heavy-duty pallet racks manufacturers ensure the racks are available in various sizes and load capacities. It also comes in certain configurations that can suit multiple storage environments.

How do our heavy-duty storage racks serve uniqueness?

Our heavy-duty racks are high-capacity shelving systems used to store bulky and heavy items in an organised and safe way. Our heavy-duty rack manufacturer in Ahmedabad ensures our products are modular in nature and can be easily expanded, relocated and adjusted based on your operational needs. If you are ready to customise your heavy-duty racking solutions, we are here to fulfil your needs at the click of a button.
