Drive in Rack

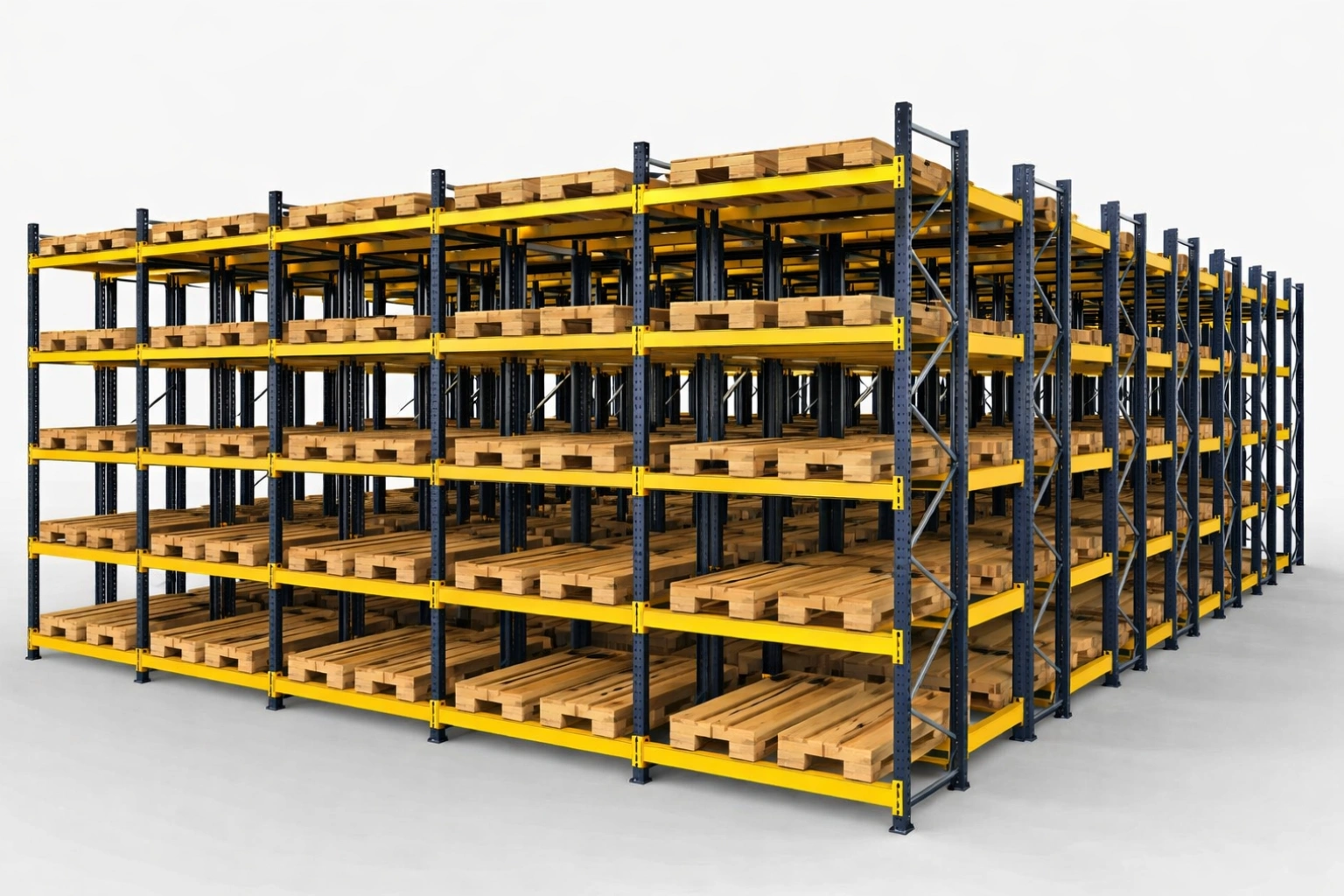

STALWART Drive-In Racking System is a high-density pallet storage system designed for storing large volumes of similar products. It operates on the LIFO principle (Last-In, First-Out), allowing forklifts to enter rack lanes for direct pallet placement without traditional aisles between bays.
- Forklift enters the racking lane to store and retrieve pallets.
- No horizontal beams between uprights — pallets rest on side-mounted support rails.
- Racks are deep, storing multiple pallets in line (4–10+ pallets deep).
- High-density storage — up to 85% space utilization.
- Maximum Space Utilization: Eliminates multiple aisles, increasing pallet density per m².
- Deep Lane Storage: Store 4–10 pallets deep in a single lane.
- LIFO Storage Flow: Ideal for non-perishable, same-SKU, low-turnover items.
- Rigid Guide Rails: Heavy-duty pallet rails provide safe support and positioning.
- Forklift Entry Tolerance: Engineered with safe clearances and entry profiles.
- Customizable Heights and Depths: Configured as per pallet size and storage requirements.
- Heavy Load Capability: Designed for pallet loads up to 1500 kg.
| Width (Beam) | 1300mm to 3000mm |
|---|---|
| Height (Upright) | 3000mm to 9000mm |
| Depth (Decking Panel) | 800mm to 1200mm |
| Levels | As per Client Requirement |
| Load Capacity | 1000kg to 5000kg UDL |
| Pallets Width | 800 to 1200mm |
| Pallet Depth | 900 to 1200mm |
| System Type | Forklift operated |
| Storage Logic | LIFO |
| Component | Available Sizes / Type | Usage |
|---|---|---|
| Upright Frame - 20 Fold | 80x65mm, 100x65mm, 110x65mm, 130x65mm | Main vertical structure bearing vertical loads |
| Beam (Box Type) - 34 Fold | 90x50mm, 100x50mm, 110x50mm, 120x50mm, 140x50mm, 160x50mm | Horizontal load-bearing member where pallets sit |
| Beam Bracket | 2/4-hook adjustable plate | Connects beams to uprights with high strength |
| GI Decking Panel - Multi Bend | If Require | If require |
| Horizontal & Diagonal Bracing | 35 x 15mm, 35 x 18mm, 35 x 25mm, 35 x 31mm | Rack stability and sway control |
| Base Plate | 120x120 mm or 150x150 mm with anchor holes | Anchors upright to floor for structural stability |
| Row Spacer | 200 mm, 300 mm | Maintains uniform spacing between back-to-back rows |
|---|---|---|
| Allen Key Bolt For Upright | - | - |
| Hex Nut and Bolt | - | - |
| Anchor Fastener | - | - |
| Rack To Rack Connecting Tie | - | - |
| Column Guard / Upright Guard | 400 mm H / 500 mm H / Wrap Type | Protects upright base from forklift impact |
|---|---|---|
| Row End Guard | Wrap-around or bolt-on | Prevents forklift damage at row ends |
| Pallet Support Bar | size ? | Prevents pallet sag, placed between beams |
| Beam Locking Pin | Spring or pin type | Prevents beam from accidental dislodgement |
Drive-in Pallet Racking System that can Simplify Your Storage Efforts
If you are looking for the most convenient storage solution with extremely high density, a drive-in pallet racking system can be your go-to solution. This is the most appropriate solution that needs fewer aisles. Ramdev Steeltech Storage Innovations can try our best to make maximum use of the space available in the warehouse.
Why is the Drive-in Pallet Racking System becoming a Reliable Choice?
There are a series of reasons why our drive-in pallet racking system is becoming famous. We ensure the solutions are adaptable to unstable load heights. They are appropriate for industries engaged in batch production.
Trust Us for the Best Results
If you are ready to adopt the most effective and cost-efficient storage solution that matters, contact us for the best quote.
Application Industry
Cold Storage / Freezers

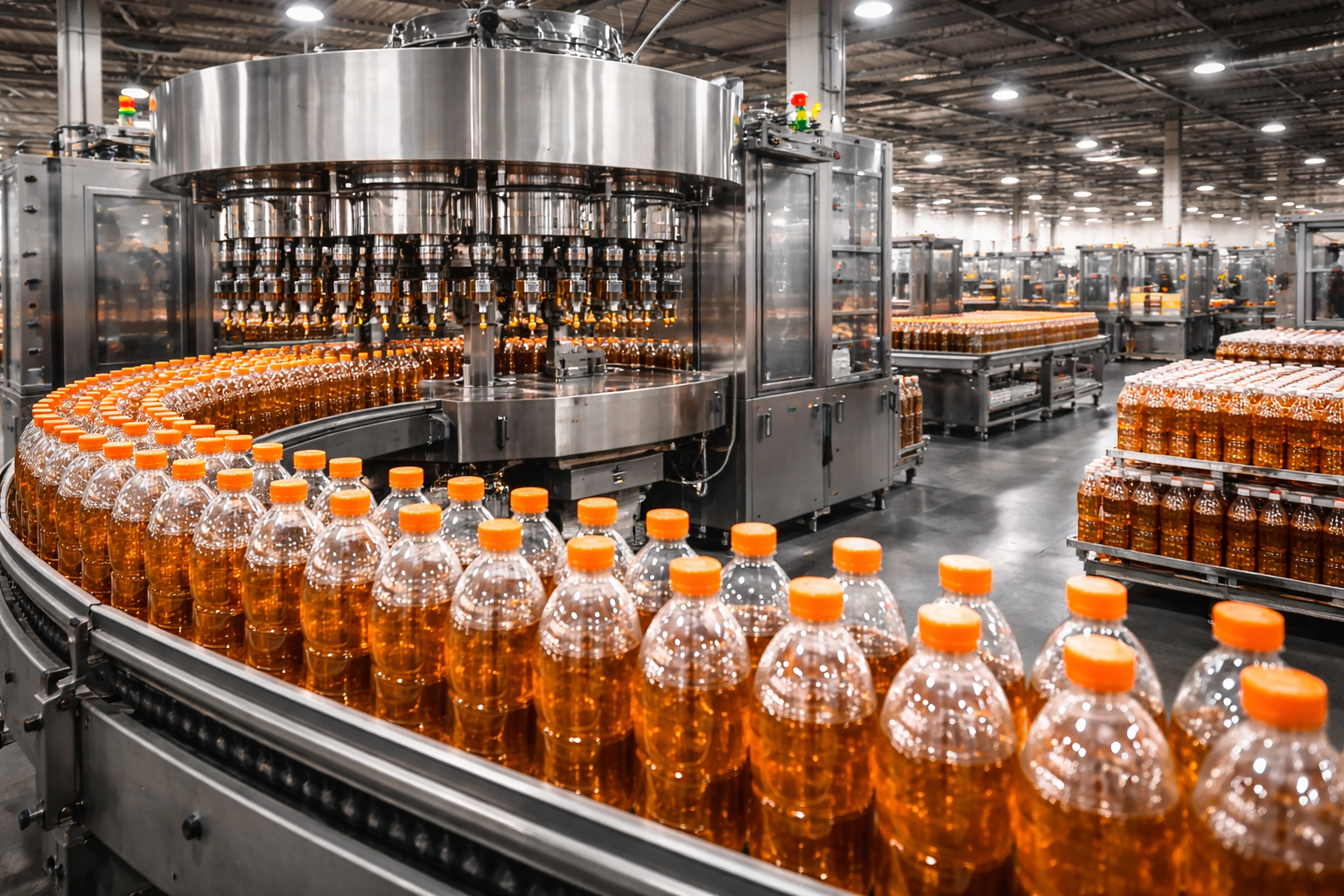

Beverage & Bottling Plants

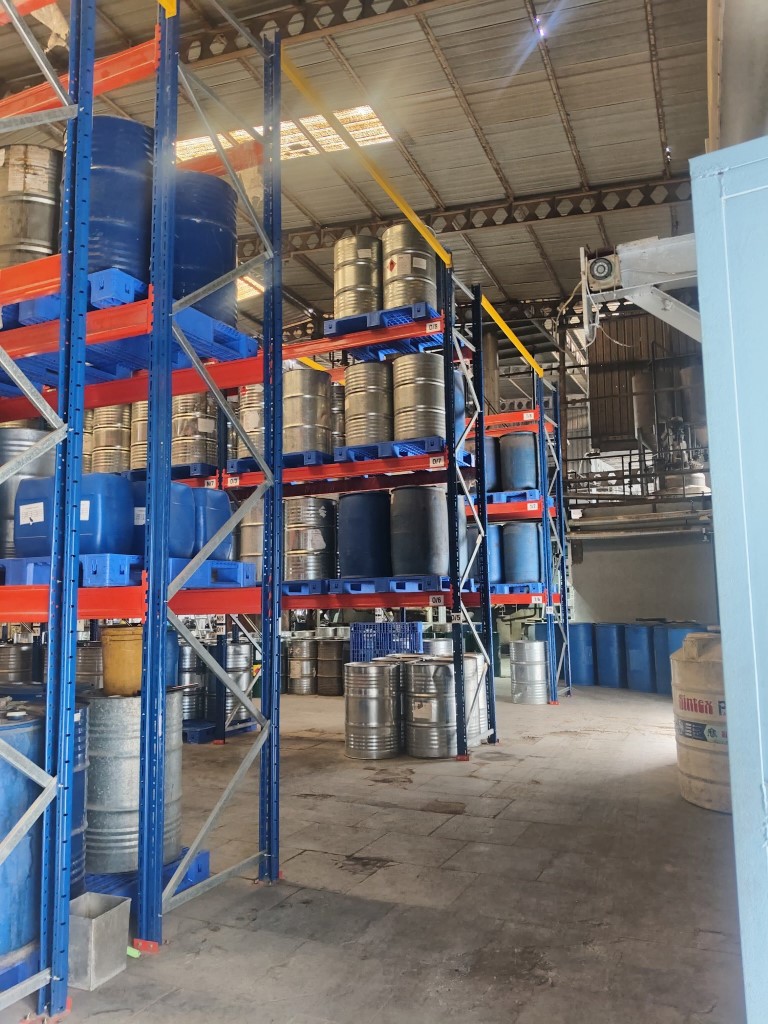

Paint, Drum & Barrel Storage
Food Distribution Centers
Chemical & Bulk Liquids (in drums)
Automotive Component Batching
Low-SKU, High-Volume Warehousing

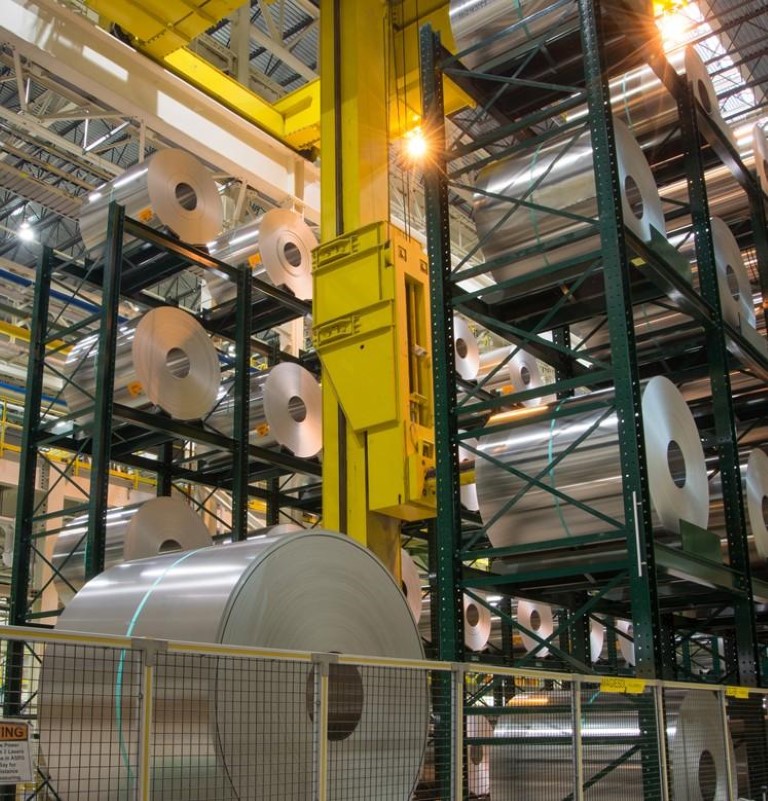

Manufacturing Input Material Storage
