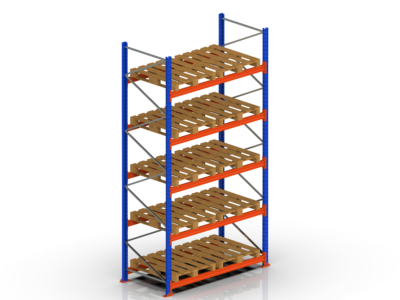

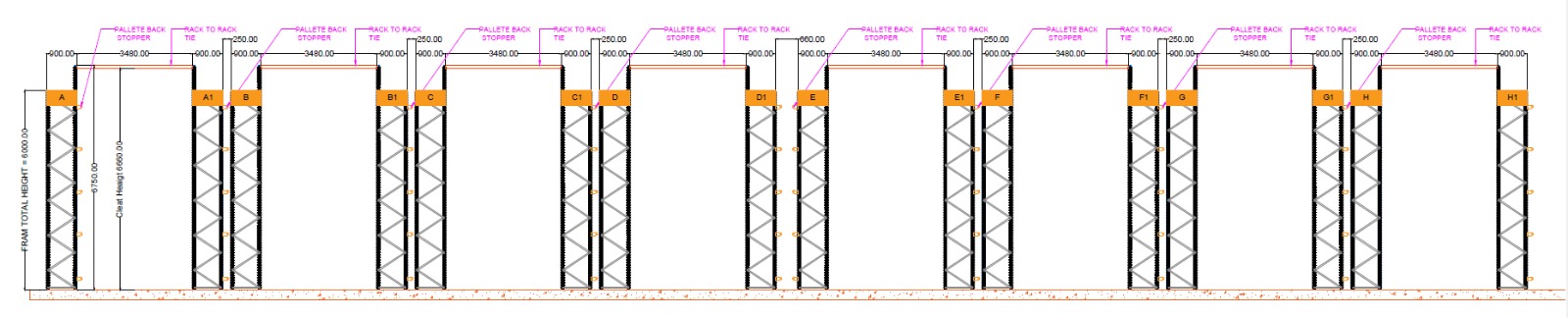

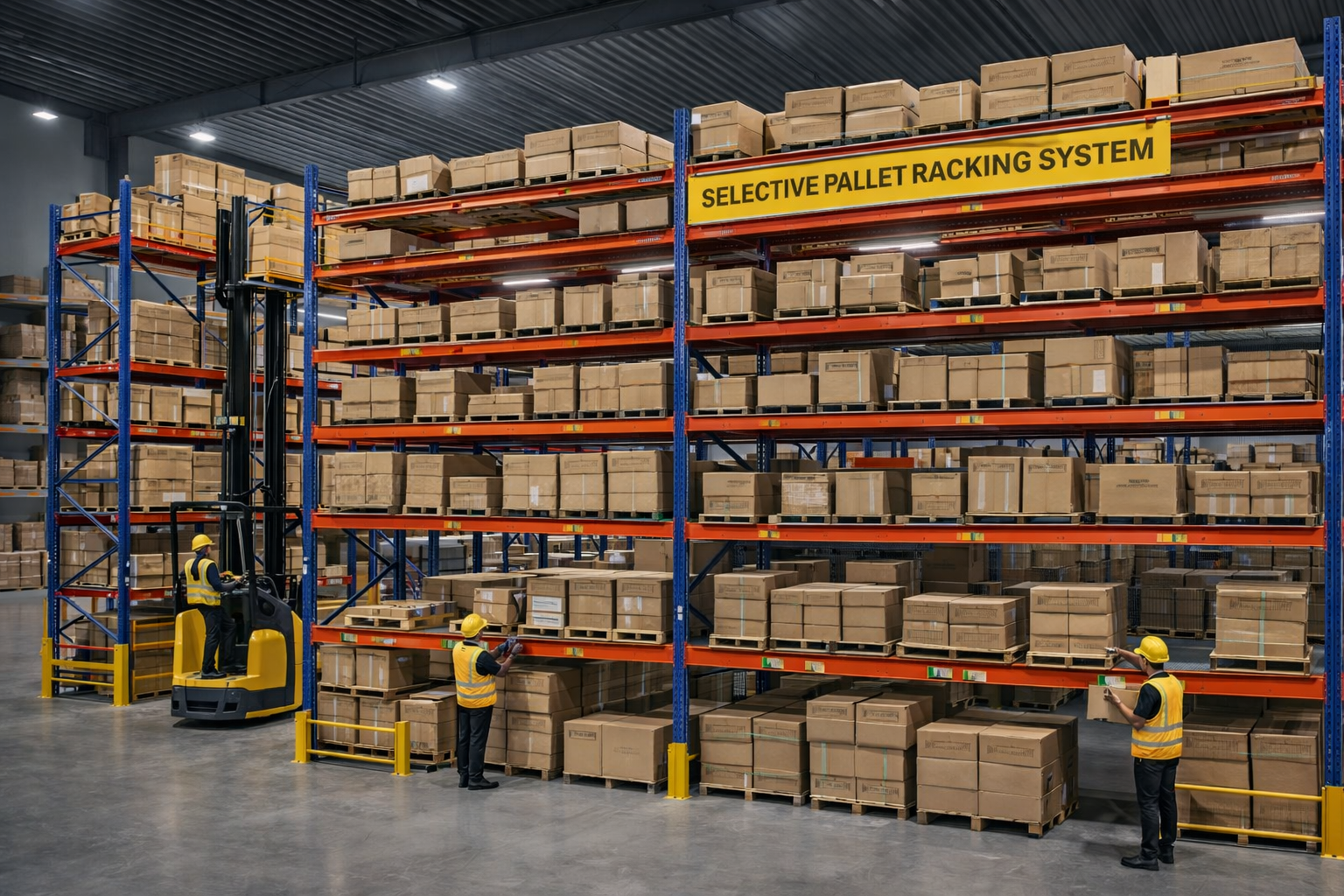

Selective Pallet Rack
Selective Pallet Rack

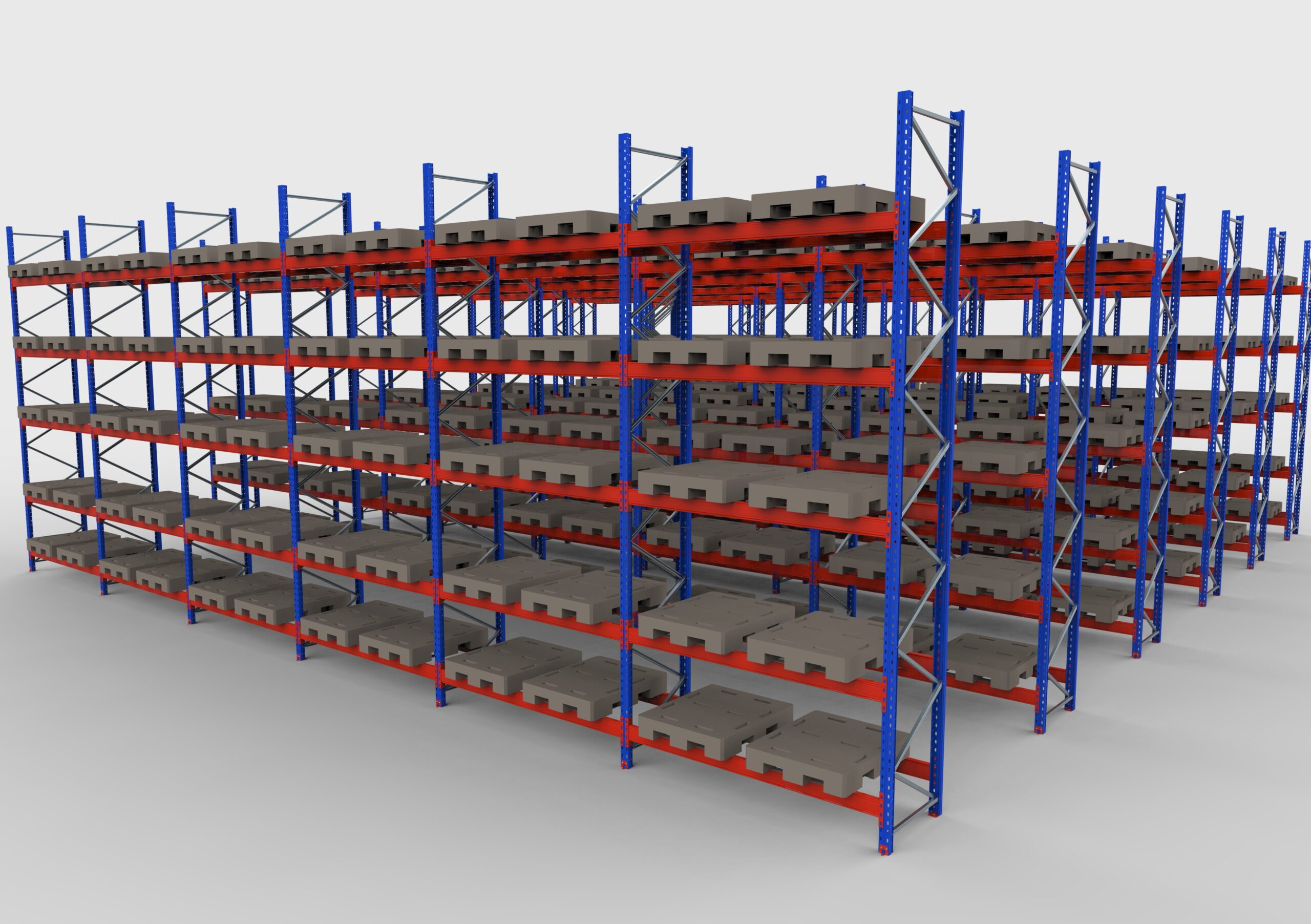

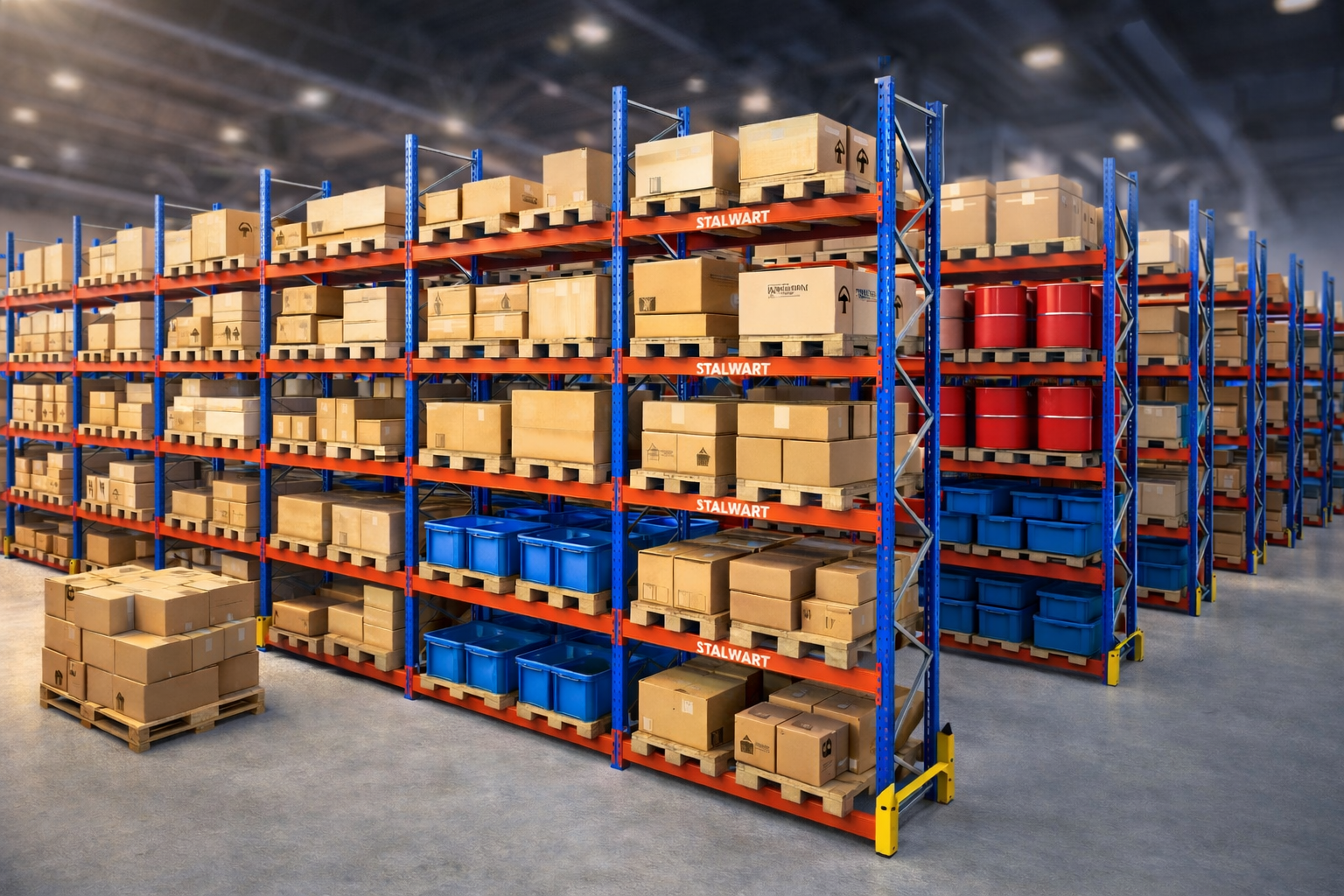

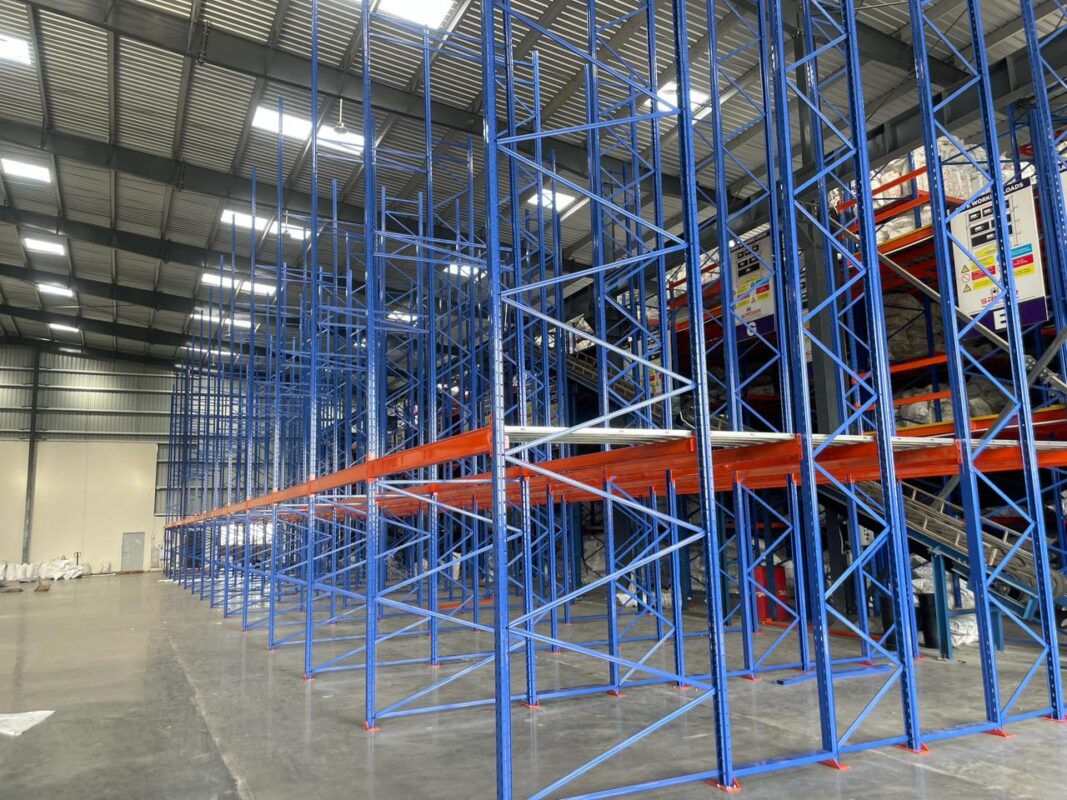

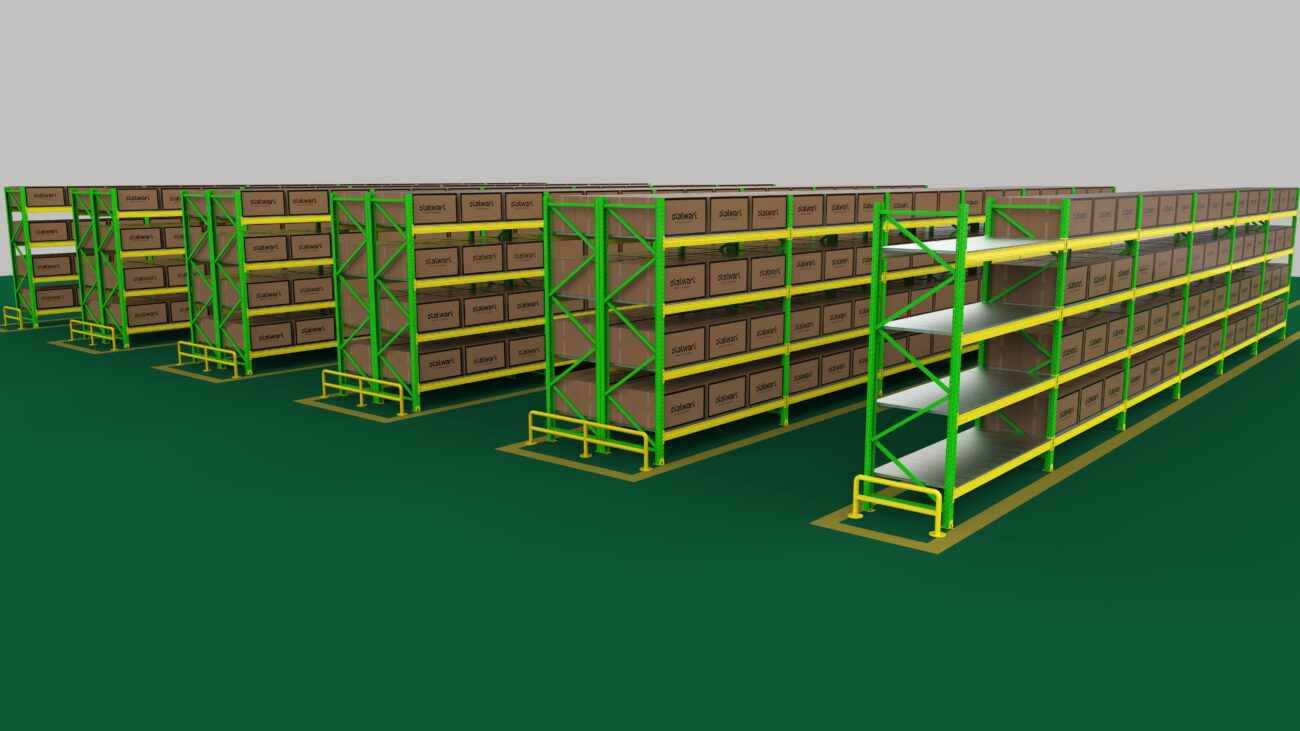

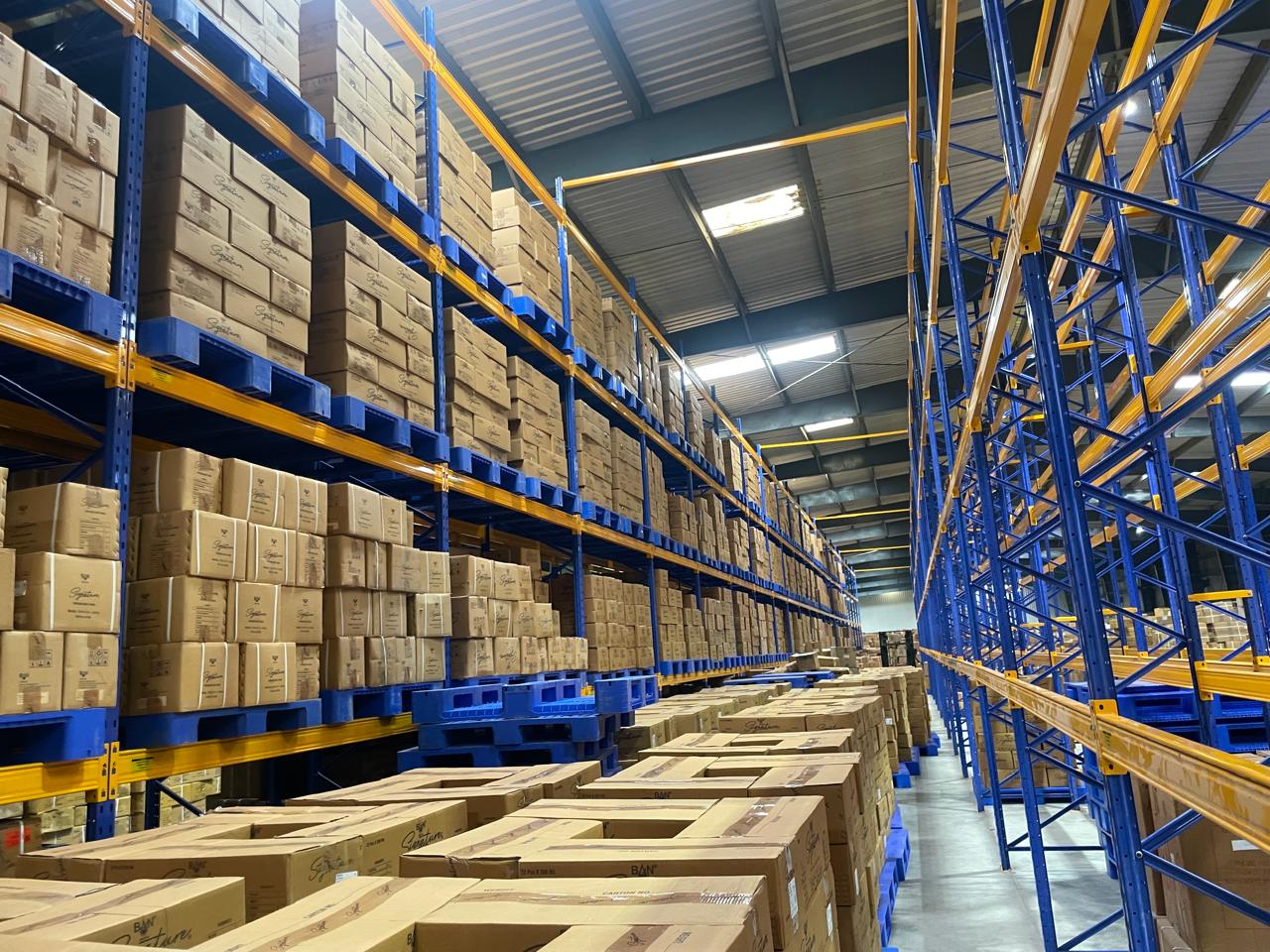

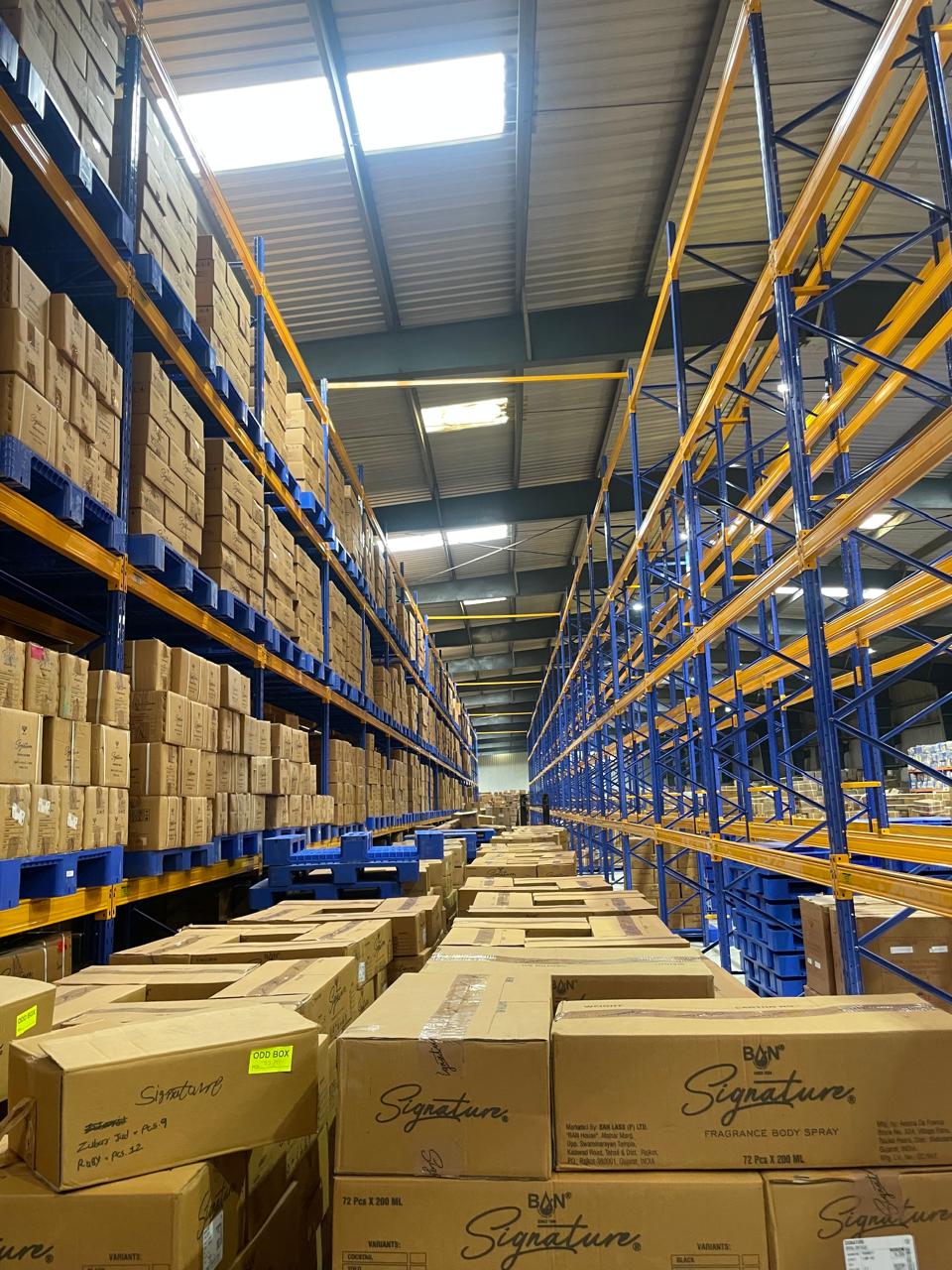

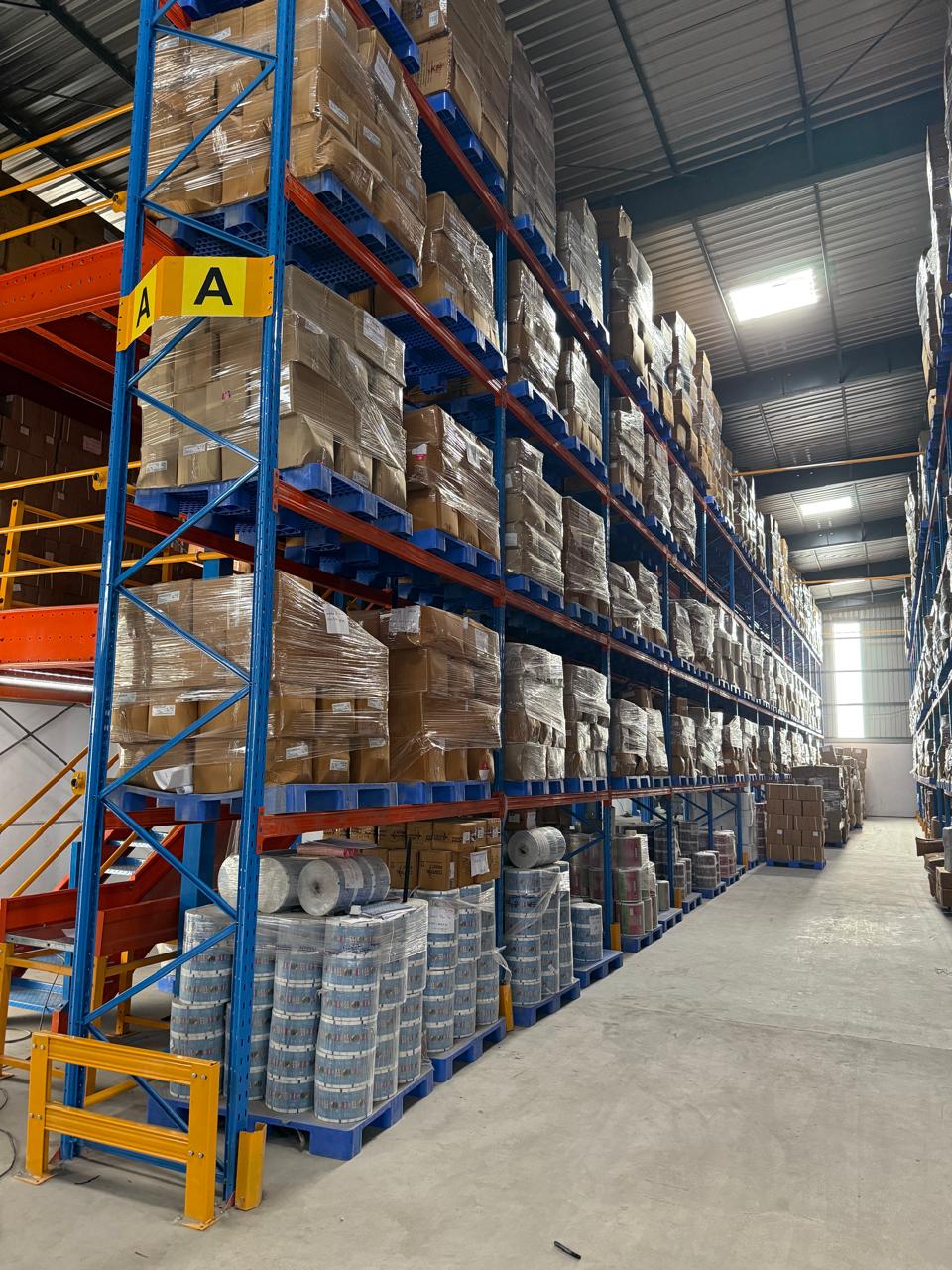

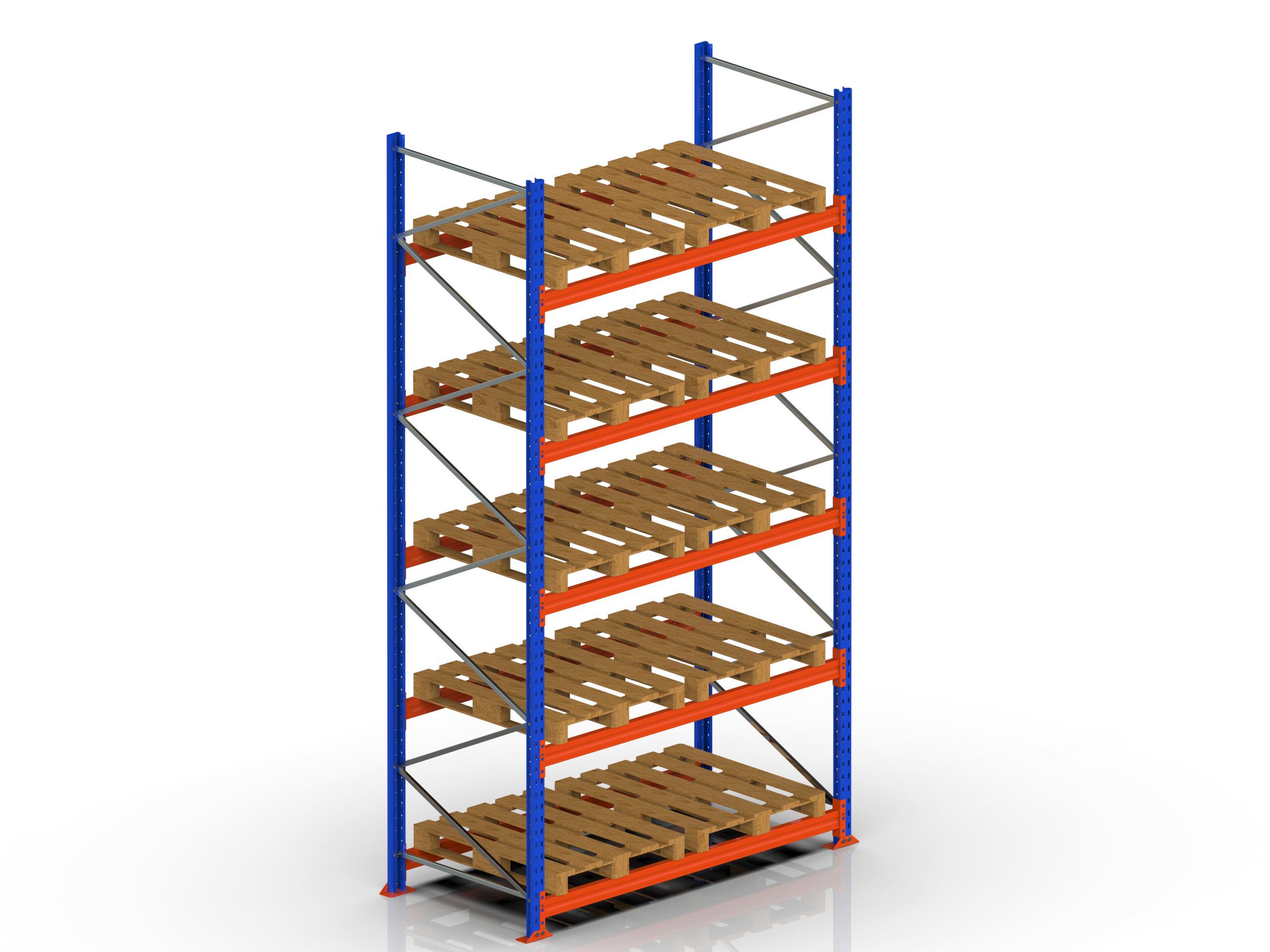

STALWART Pallet Racking System is a heavy-duty storage solution engineered for storing palletized goods using forklifts or reach trucks. It is modular, space-optimized, and scalable — suitable for high bay and bulk storage applications across industries.
- Beams are designed to directly support pallets, not decking
- Forklift or material handling equipment is used for loading/unloading
- Levels are typically 2–6, with large bay widths
- Uses components like pallet support bars, row spacers, and locking pins
- Load capacity ranges from 1000 kg to 4000 kg per level
Key Features
- Direct Access to Pallets: Allows individual pallet retrieval without moving other pallets, enabling easy stock rotation (FIFO).
- Adjustable Design: Beam levels can be easily repositioned at regular pitch intervals to accommodate changing pallet sizes.
- High Load Capacity: Engineered to support up to 4000 kg per level (Uniformly Distributed Load).
- Forklift Compatibility: Designed for efficient use with forklifts, reach trucks, and stackers.
- Modular Expansion: Can be expanded horizontally or vertically with ease to match future storage needs.
- Enhanced Safety: Includes locking pins, upright guards, and back stoppers to ensure secure pallet positioning and accident prevention.
Sizes Available
- Floor Height
- 2000 mm – 12,000 mm total
- Column Span
- 3000 – 6000 mm depending on beam design
- Deck Load Capacity
- 300 – 1200 kg/m²
- Load Capacity
- 1000kg to 5000kg UDL
Basic Elements
| Component | Available Sizes / Type | Usage |
|---|---|---|
| Upright Frame - 20 Fold | 80x65mm, 100x65mm, 110x65mm, 130x65mm | Main vertical structure bearing vertical loads |
| Beam (Box Type) - 34 Fold | 90x50mm, 100x50mm, 110x50mm, 120x50mm, 140x50mm, 160x50mm | Horizontal load-bearing member |
| Beam Bracket | 2/4-hook adjustable plate | Connects beams to uprights with high strength |

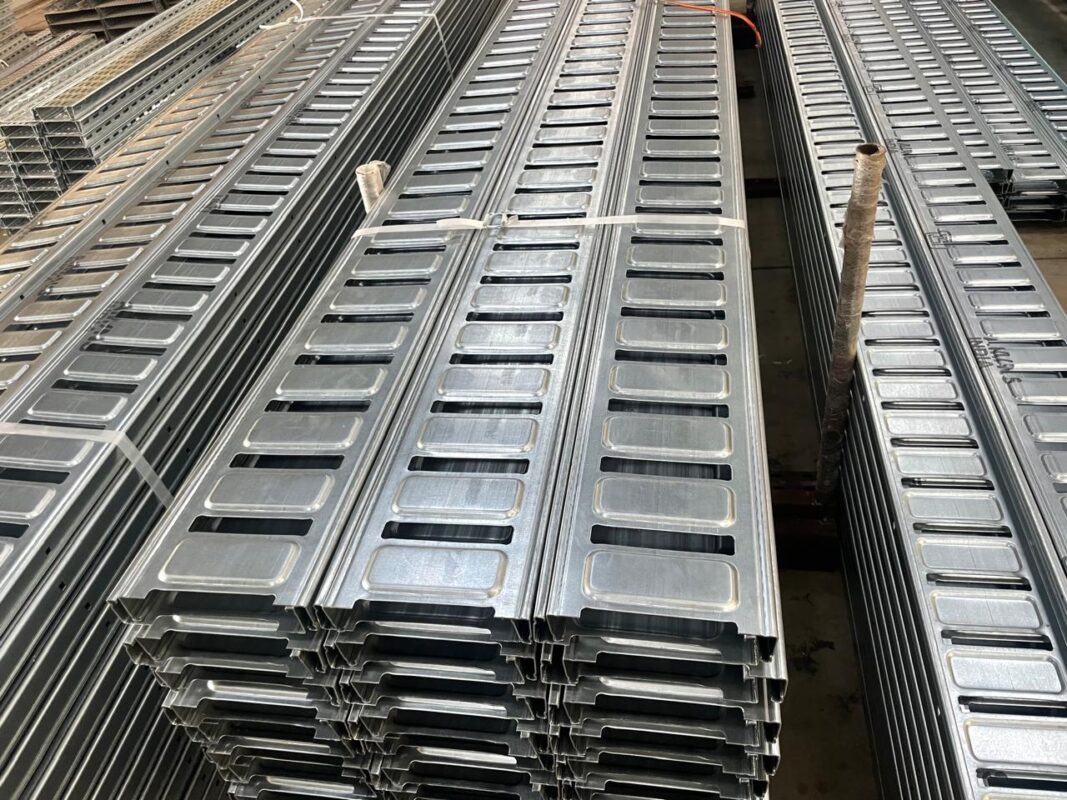

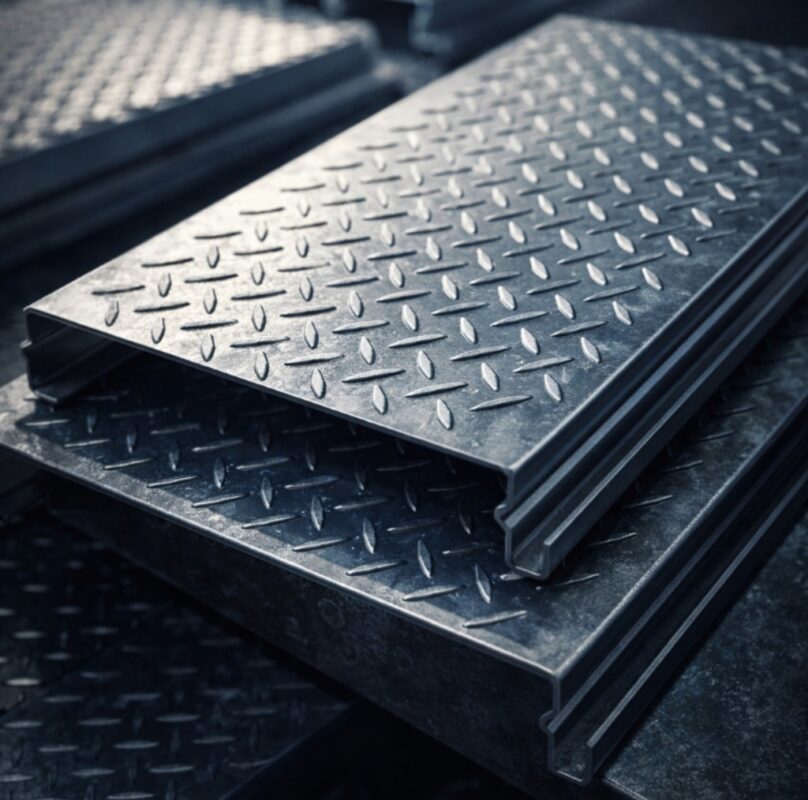

| GI Decking Panel - Multi Bend | If Require | If Require |
| Horizontal & Diagonal Bracing | 35 x 15mm, 35 x 18mm, 35 x 25mm, 35 x 31mm | Rack stability and sway control |
| Base Plate | 120x120 mm or 150x150 mm with anchor holes | Anchors upright to floor for structural stability |
Accessories
| Pallet Support Bar | Â | Horizontal load-bearing member |
|---|---|---|
| Row Spacer | 200 mm, 300 mm | Maintains uniform spacing between back-to-back rows |
| Allen Key Bolt For Upright | - | - |
| Hex Nut and Bolt | - | - |
| Anchor Fastener | - | - |
| Rack To Rack Connecting Tie | - | - |
| Side Cladding (optional) | - | - |
| Back Cladding (optional) | - | - |
| Top Cap (optional) | - | - |
| Foot Plate (optional) | - | - |
| Tie | - | - |
| Tie Plate | - | - |
Safety Elements
| Beam Locking Pin | Spring or pin type | Prevents beam from accidental dislodgement |
|---|---|---|
| Column Guard / Upright Guard | 400 mm H / 500 mm H / Wrap Type | Protects upright base from forklift impact |

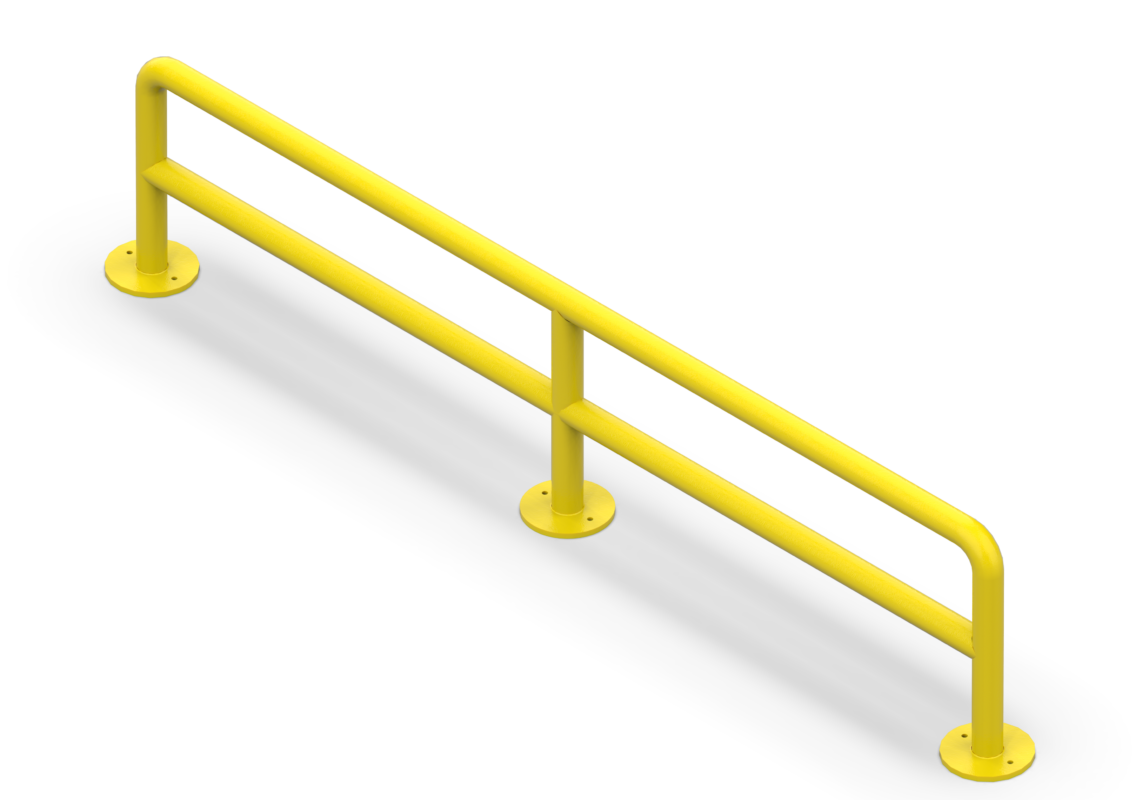

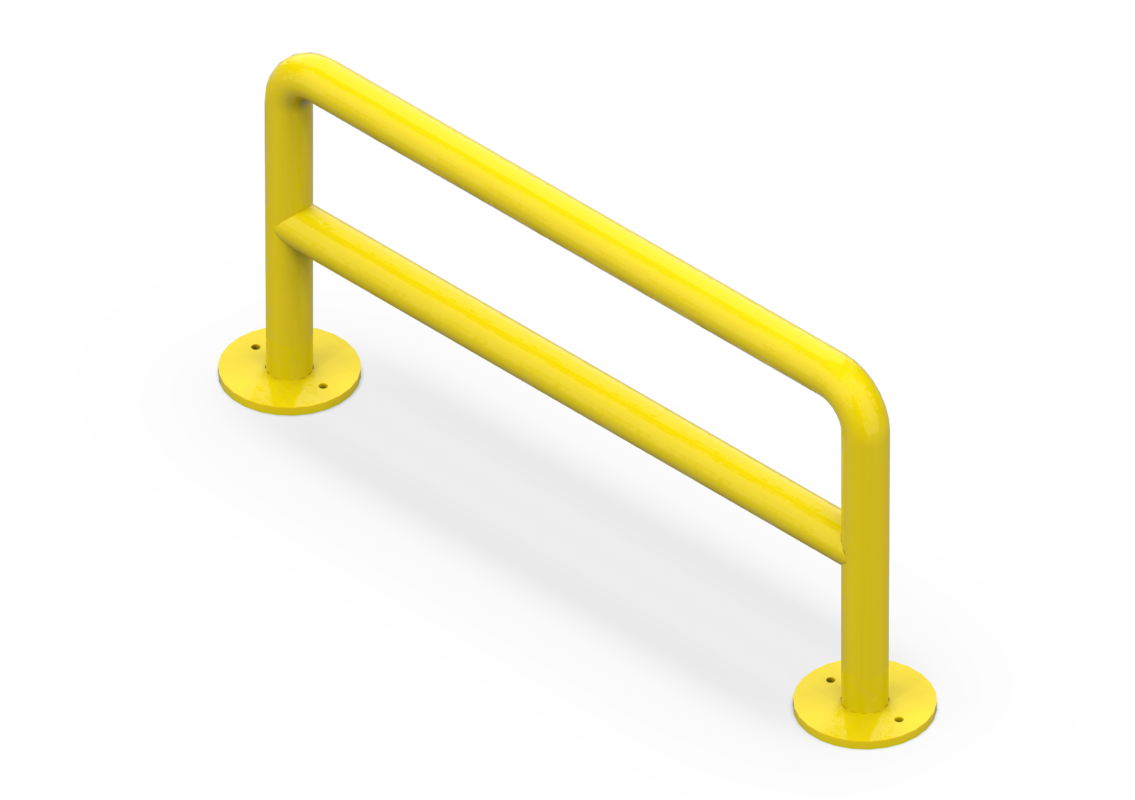

| Row End Guard | Wrap-around or bolt-on | Prevents forklift damage at row ends |
| Side & Back Cladding (optional) | Plain Sheet or perforated | Prevents item fall-through; adds rigidity |
Application Industry

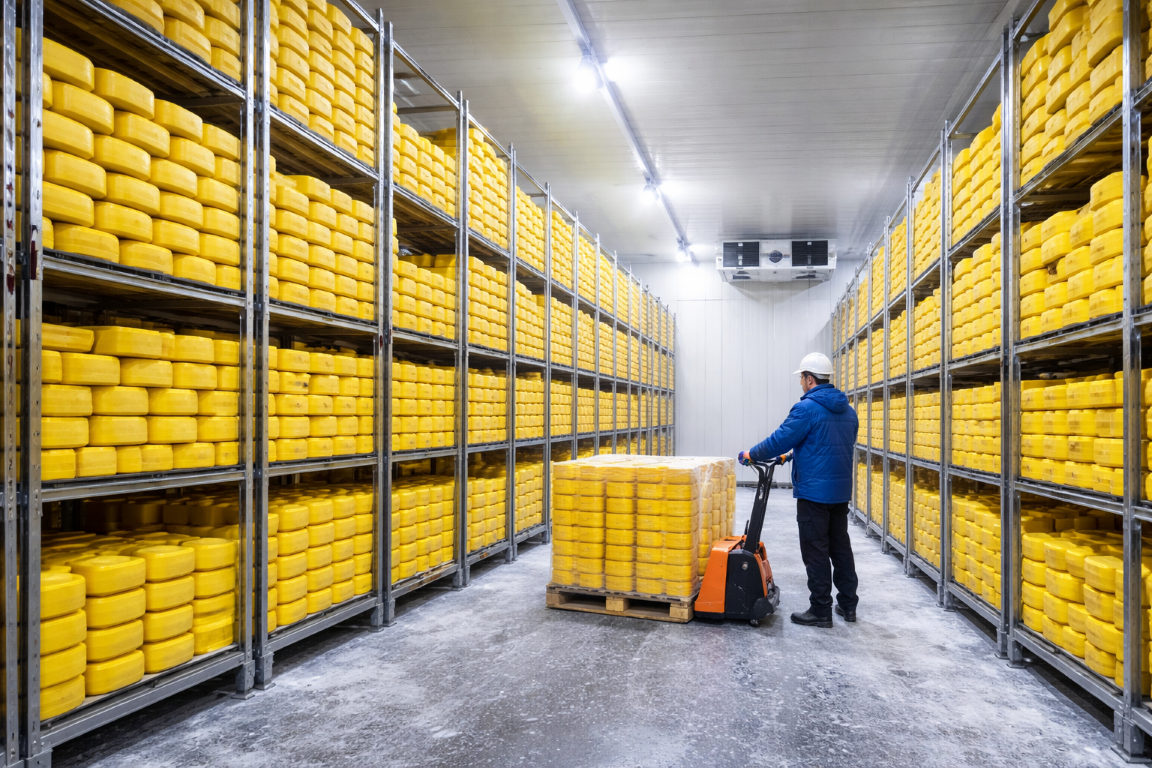

Cold Storage & Food Warehousing
FMCG & Consumer Goods
E-commerce Fulfillment
Automotive Parts & Raw Material

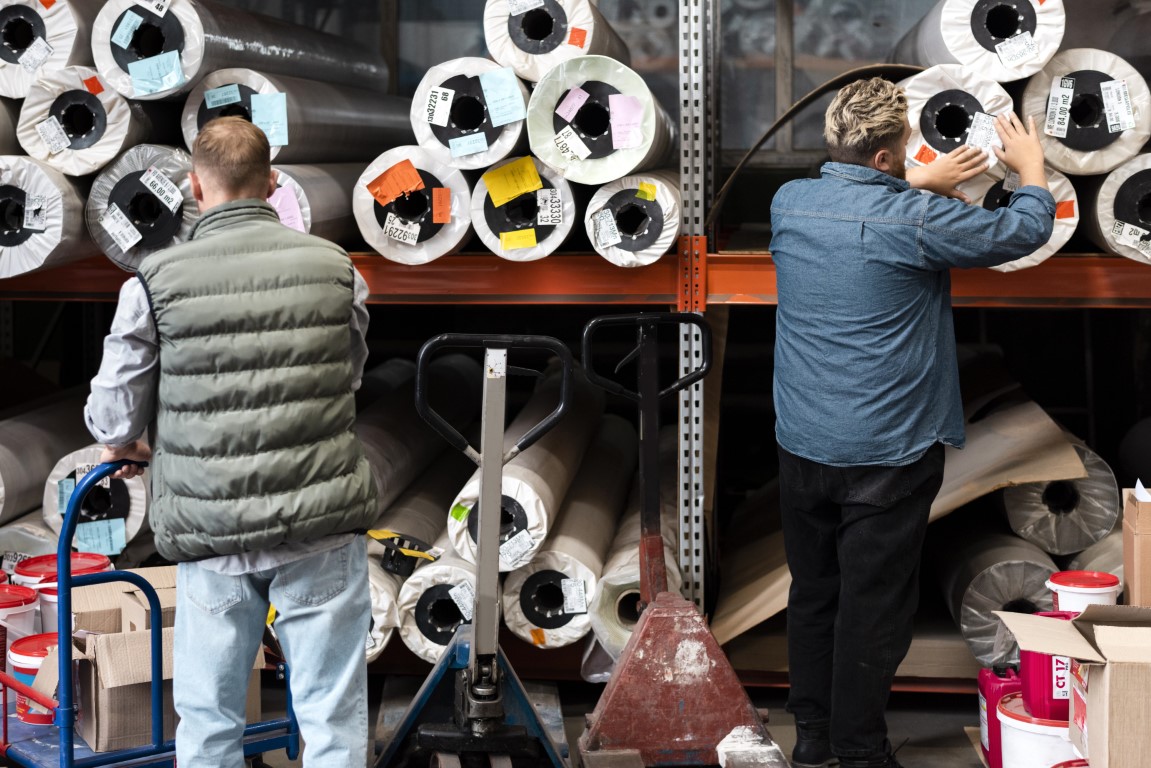

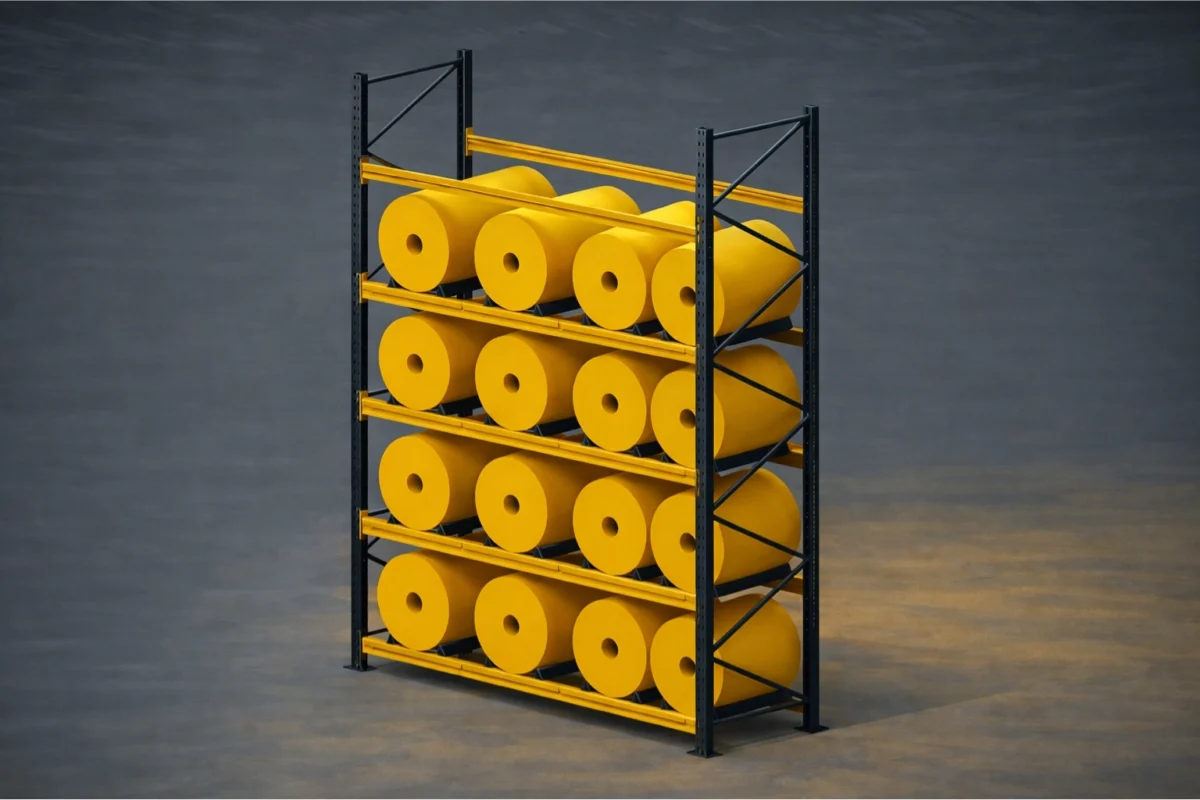

Textile Rolls or Finished Goods
Retail Distribution Hubs

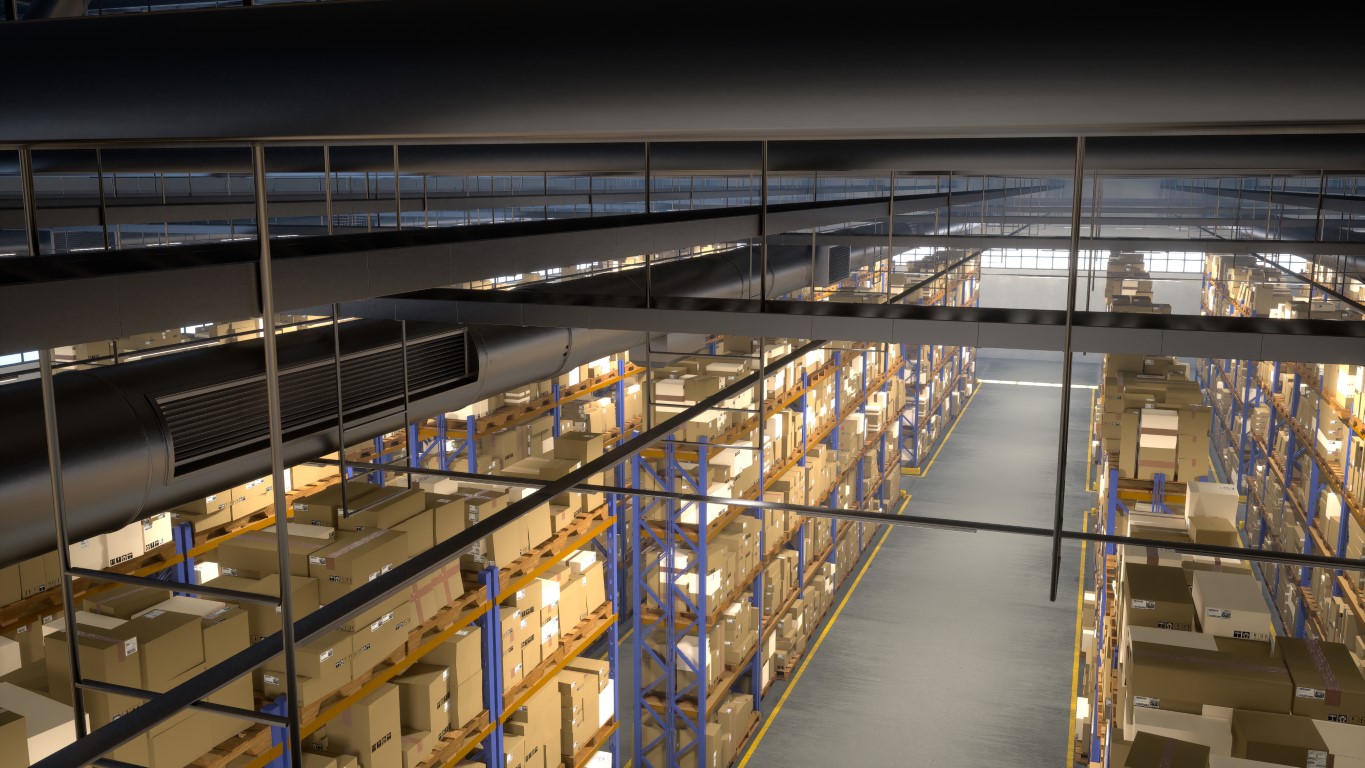

Logistics & 3PL Centers
Engineering & Heavy Equipment
