Multi Tier Racking System

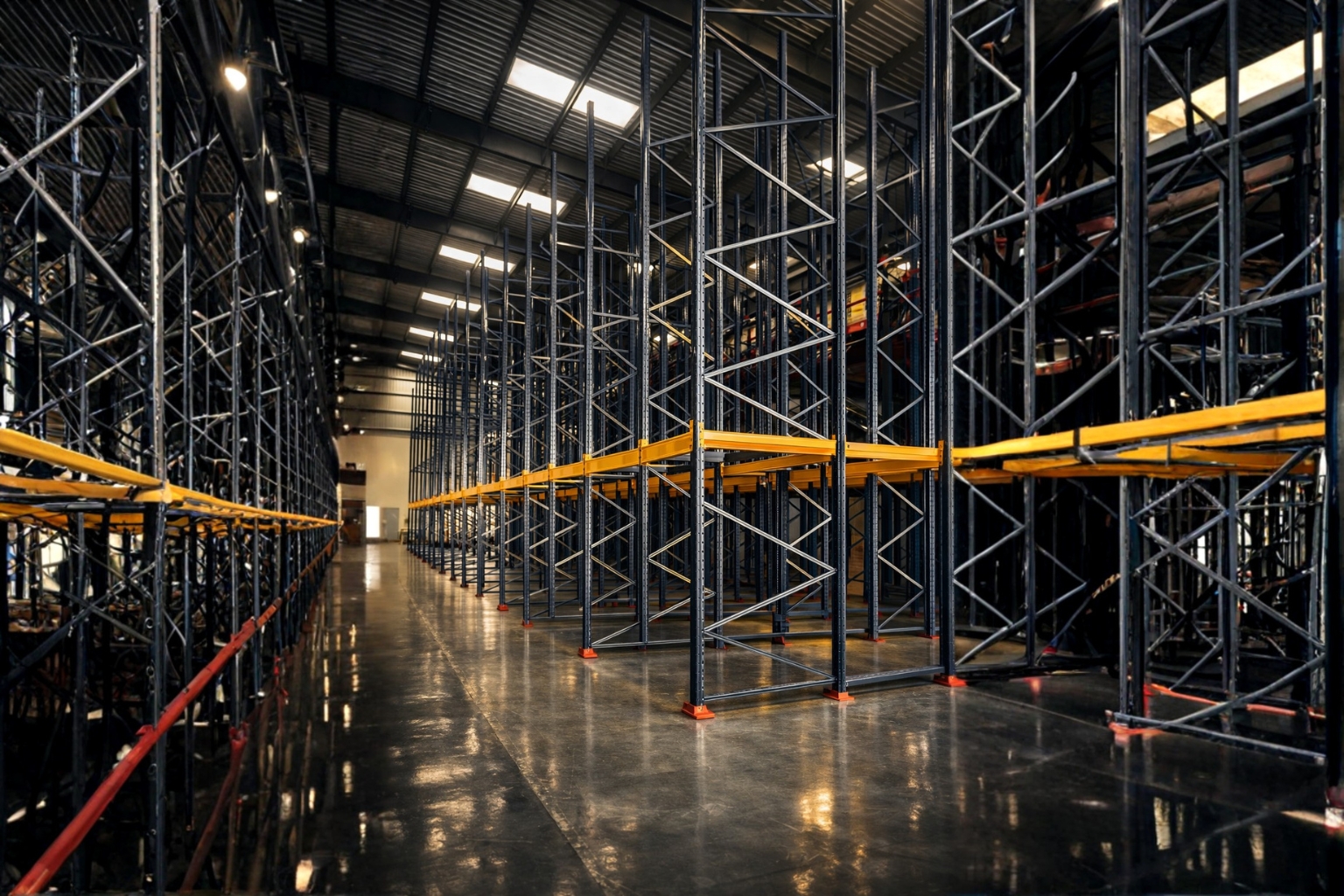

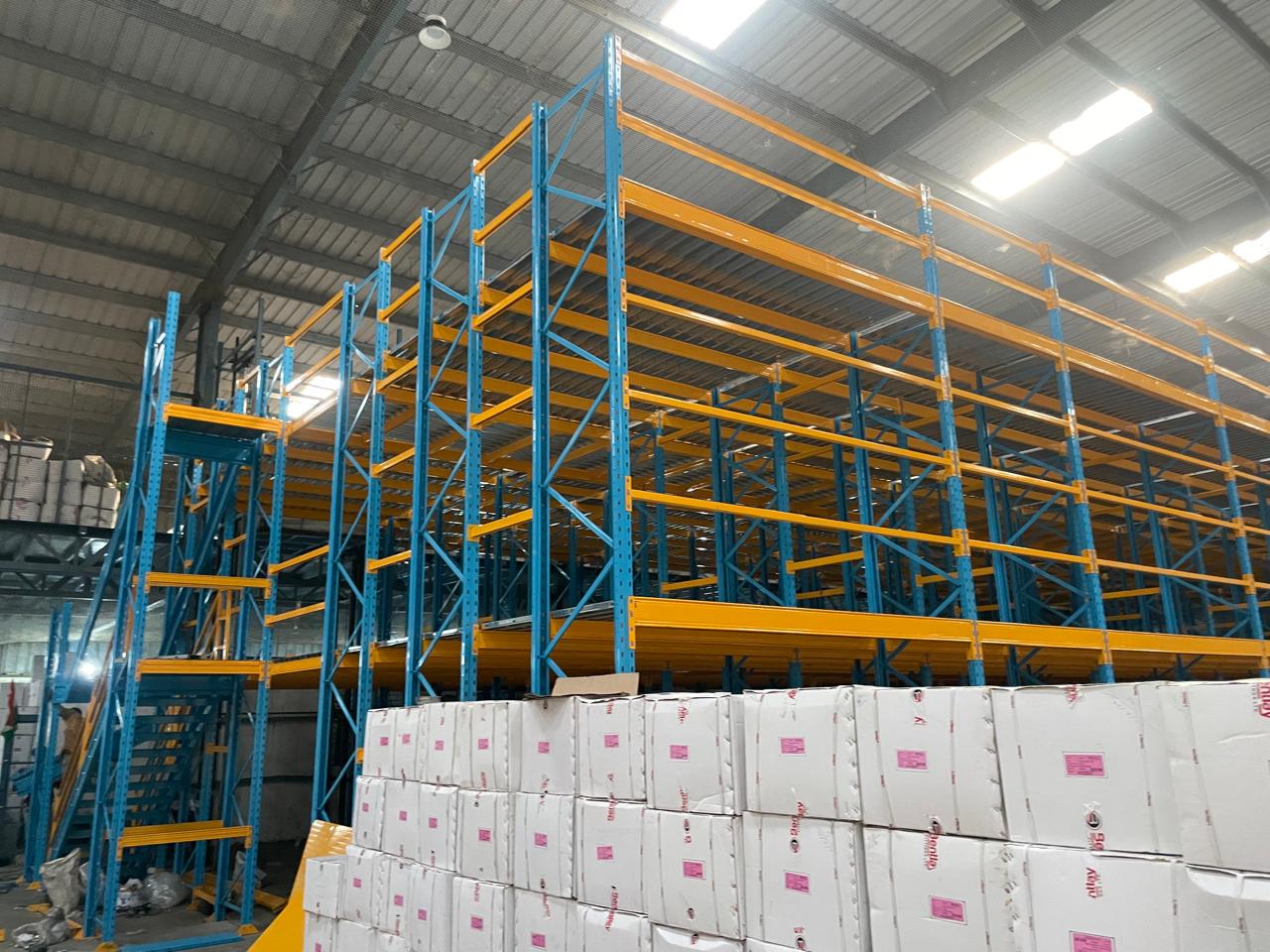

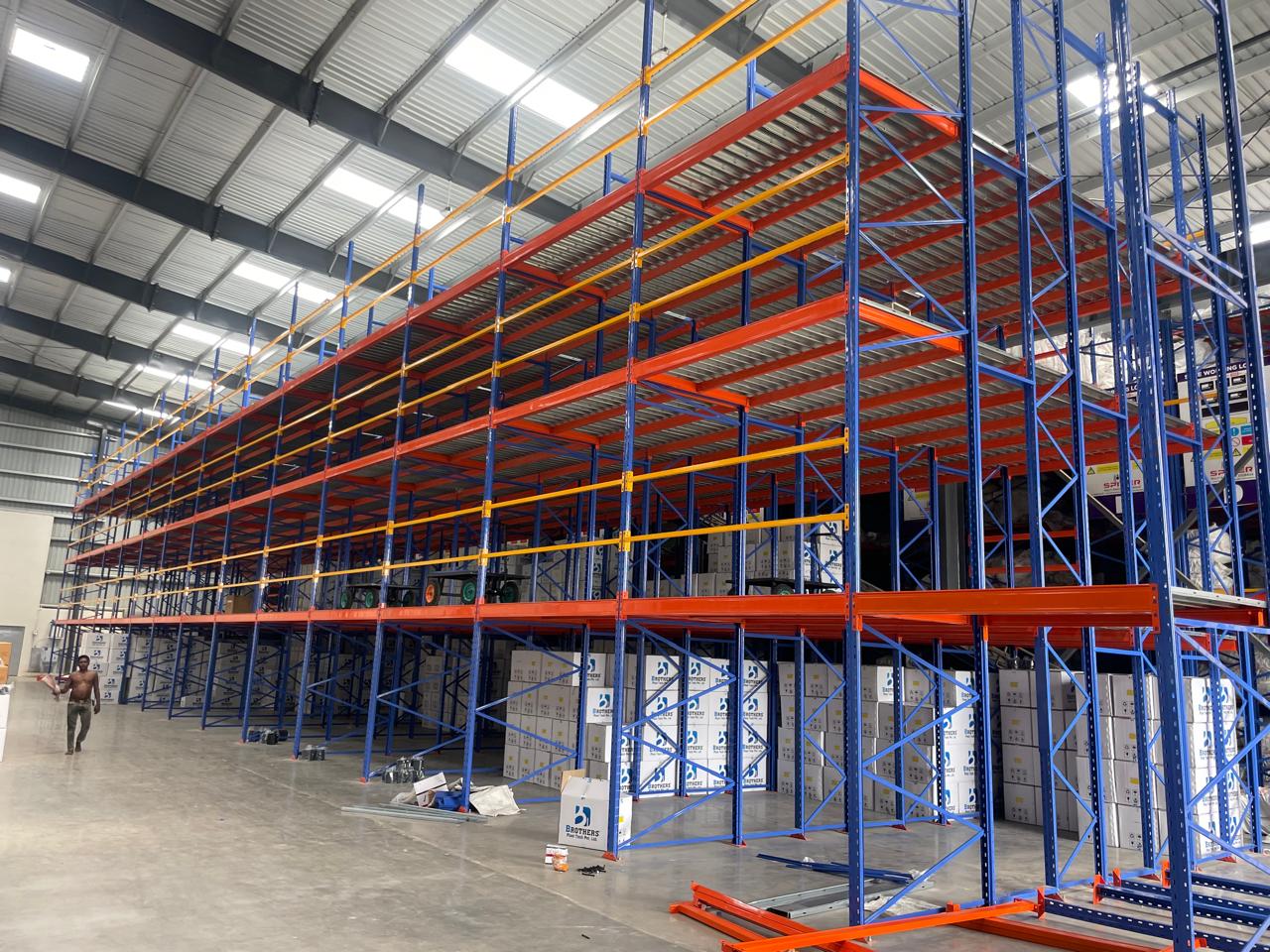

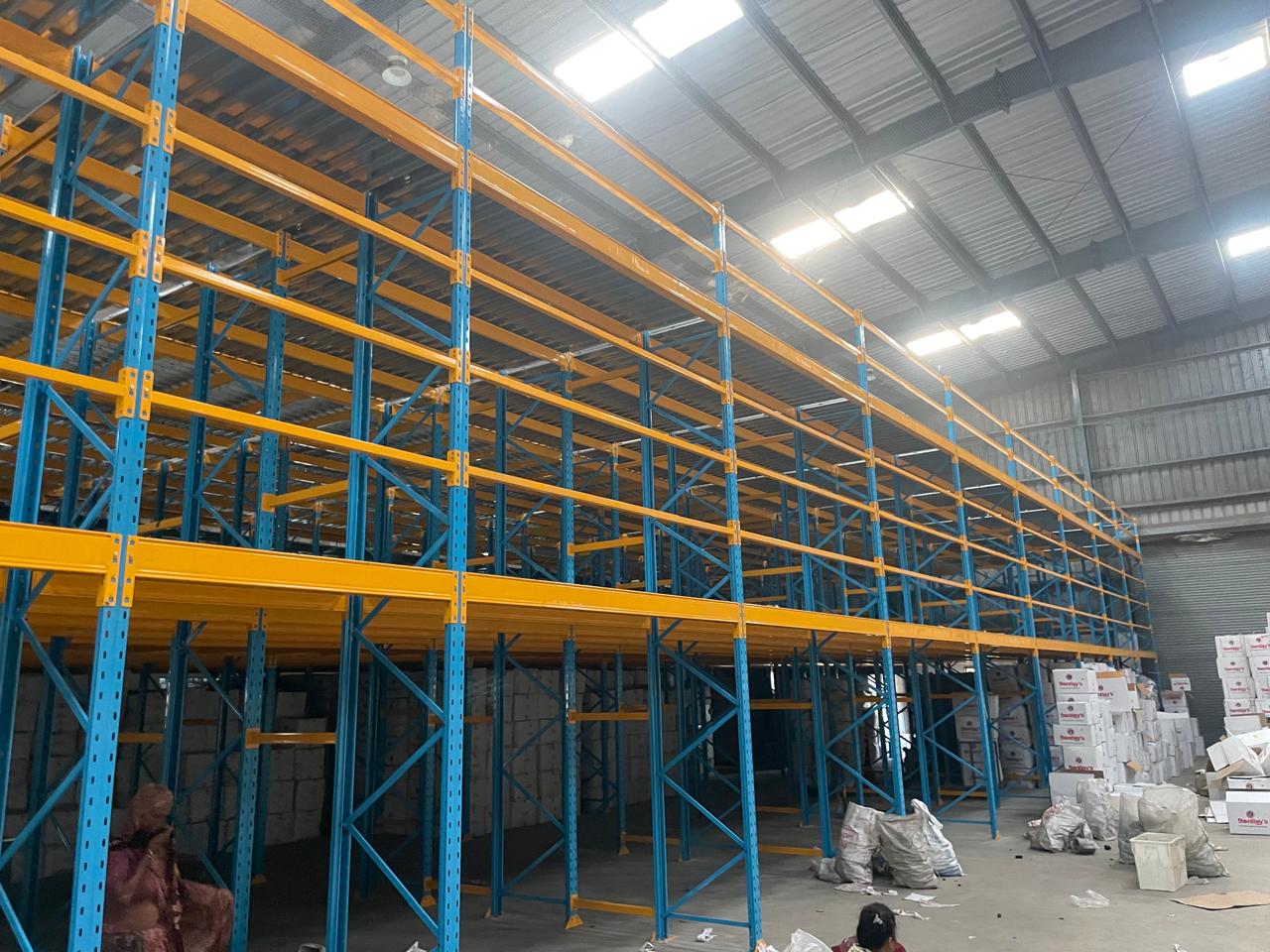

STALWART Two Tier Racking System is a multi-level shelving structure built entirely using the racking framework, allowing manual access to goods at multiple heights without the need for civil mezzanine floors. It is ideal for vertical space optimization in high-roof warehouses where efficient order picking and segregation are essential.
- It consists of multiple storage levels (typically 2 or 3) built from the racking system itself.
- Integrated staircases and walkways are provided to access upper levels.
- The racking columns act as both shelving support and floor support — no separate mezzanine columns.
- It is designed for manual storage operations at multiple levels.
- Levels are equipped with shelves, flooring panels, railings, and safety features.
- Two-level (or three-level) storage without civil mezzanine
- Full bolted modular design – easy to dismantle or expand
- Access provided via inbuilt staircases and walkways
- Railing, and anti-slip flooring options for safety
- Load capacity: up to 1000 kg/level (UDL)
How It's Different from Other Racking Systems

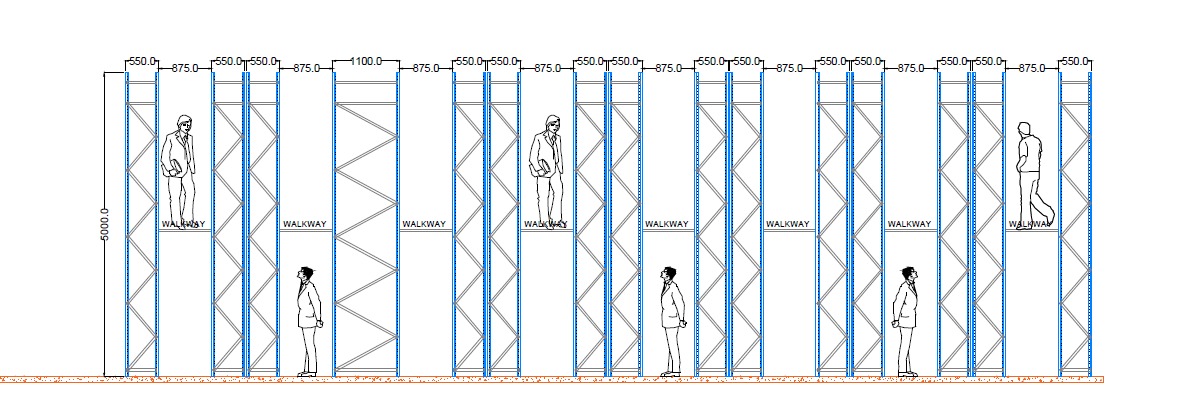

| Two Tier Racking | Standard Racking Systems |
| Built with walkways and stairs | Only single-level access from the ground |
| Multi-tier storage with full accessibility | One-level storage; no overhead walking area |
| Uses rack structure to support upper floors | No upper walking surface; just shelving or pallets |
| Manual picking on multiple levels | Manual or forklift picking at ground level only |
| Ideal for small parts, bins, cartons | Mostly used for pallets or bulk cartons |
| Width (Beam) | 1300mm to 3000mm |
|---|---|
| Height (Upright) | 3000mm to 9000mm |
| Depth (Decking Panel) | 800mm to 1200mm |
| Levels | As per Client Requirement |
| Load Capacity | 1000kg to 5000kg UDL |
| Component | Available Sizes / Type | Usage |
|---|---|---|
| Upright Frame - 20 Fold | 80x65mm, 100x65mm, 110x65mm, 130x65mm | Main vertical structure bearing vertical loads |
| Step Beams | Size : 85x65, 100x65, 110x65, 130x65mm | Horizontal load-bearing member |
| Beam (Box Type) - 34 Fold | 90x50mm, 100x50mm, 110x50mm, 120x50mm, 140x50mm, 160x50mm | Horizontal load-bearing member |
| Beam Bracket | 2/4-hook adjustable plate | Connects beams to uprights with high strength |
| GI Decking Panel - Multi Bend | 300mm--1200mm (W), 400–1200mm (D) 1.2mm–1.6mm | Storage surface for goods |
| Staircase | 800–1000 mm width | Access to upper levels |
| Railing (Optional) | ||
| Walkway | ||
| Horizontal & Diagonal Bracing | 35 x 15mm, 35 x 18mm, 35 x 25mm, 35 x 31mm | Rack stability and sway control |
| Chequered Plate (Optional) |
| Row Spacer | 200 mm, 300 mm | Maintains uniform spacing between back-to-back rows |
|---|---|---|
| Base Plate | 120x120 mm or 150x150 mm with anchor holes | Anchors upright to floor for structural stability |
| Beam Locking Pin | Spring or pin type | Prevents beam from accidental dislodgement |
| Allen Key Bolt For Upright | - | - |
| Hex Nut and Bolt | - | - |
| Anchor Fastener | - | - |
| Rack To Rack Connecting Tie | - | - |
| Side Cladding (optional) | - | - |
| Back Cladding (optional) | - | - |
| Shelf Dividers (optional) | - | - |
| Top Cap (optional) | - | - |
| Foot Plate (optional) | - | - |
| Tie | - | - |
| Tie Plate | - | - |
| Column Guard / Upright Guard | 400 mm H / 500 mm H / Wrap Type | Protects upright base from forklift impact |
|---|---|---|
| Row Spacer | 200 / 300 mm | Used between back-to-back racks |
| Row End Guard | Wrap-around or bolt-on | Prevents forklift damage at row ends |
How Our Multi-Tier Racking System Has Been Serving the Best Results?

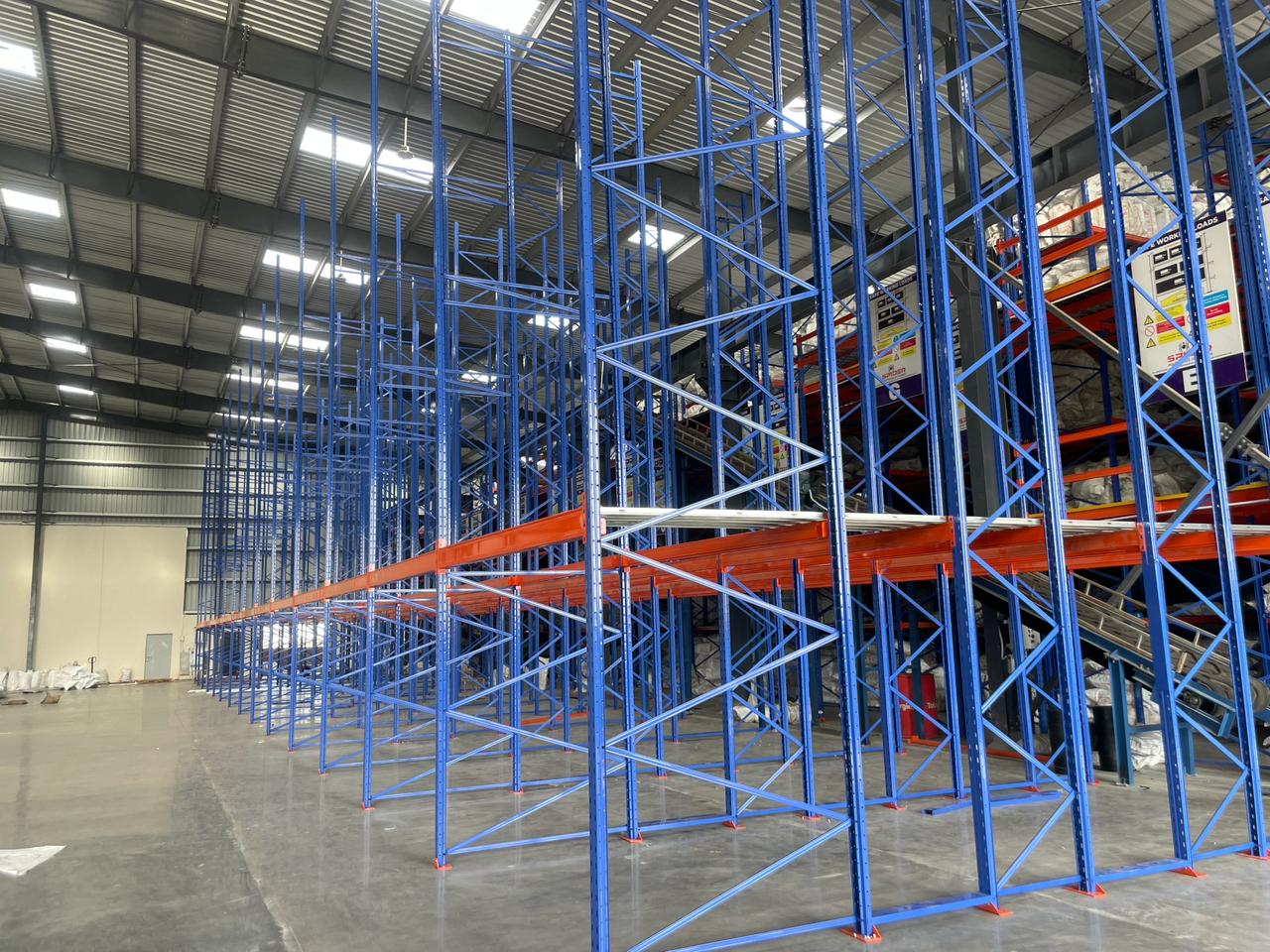

A multi-tier racking system at Ramdev Steeltech Storage Innovations works as a high-density storage solution that uses the vertical space for multiple tiers of shelving. Each of these levels can work as your Mezzanine floors that allow workers to walk on the intermediate levels for storage and inspection.
How can this multi-tier racking system increase storage capacity?
Our multi-tier racking system significantly increases storage capabilities without expanding the warehouse footprint. Our solutions are designed with precision, durability and flexibility in mind for your growing storage demands.
Get Our Customised Solutions for Better Consistency
Ramdev Steeltech Storage Innovations offers complete customisation for a multi-tier racking system. You can choose the number of levels depending on your vertical space. So, contact us now and start your customization with us.
