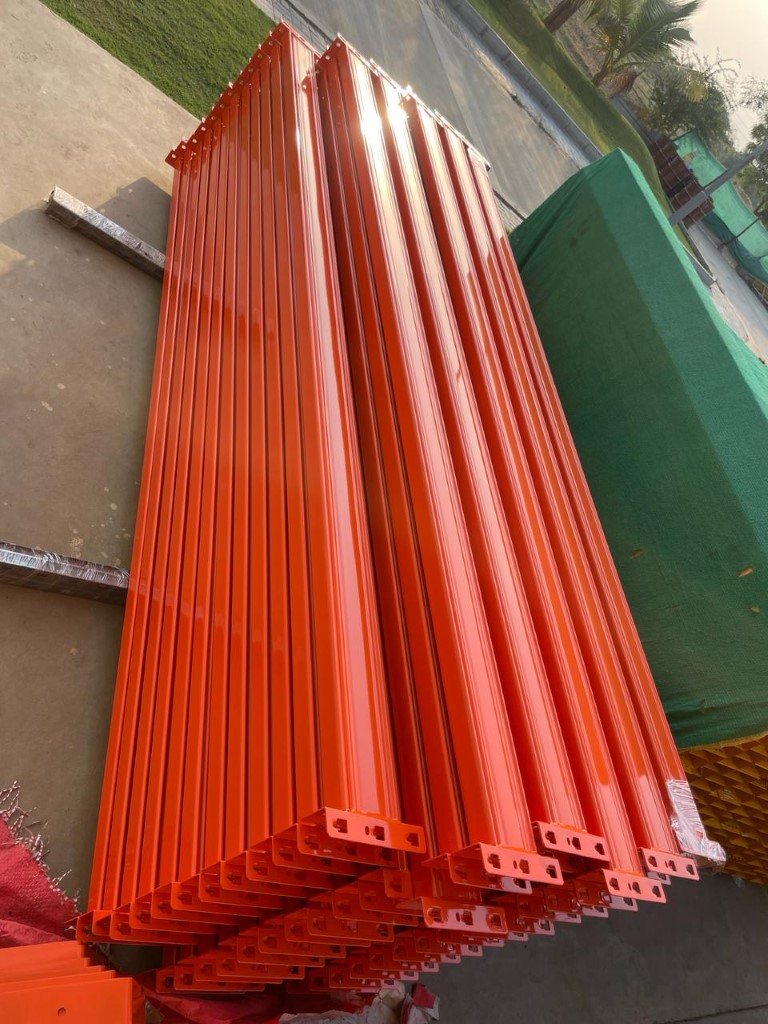

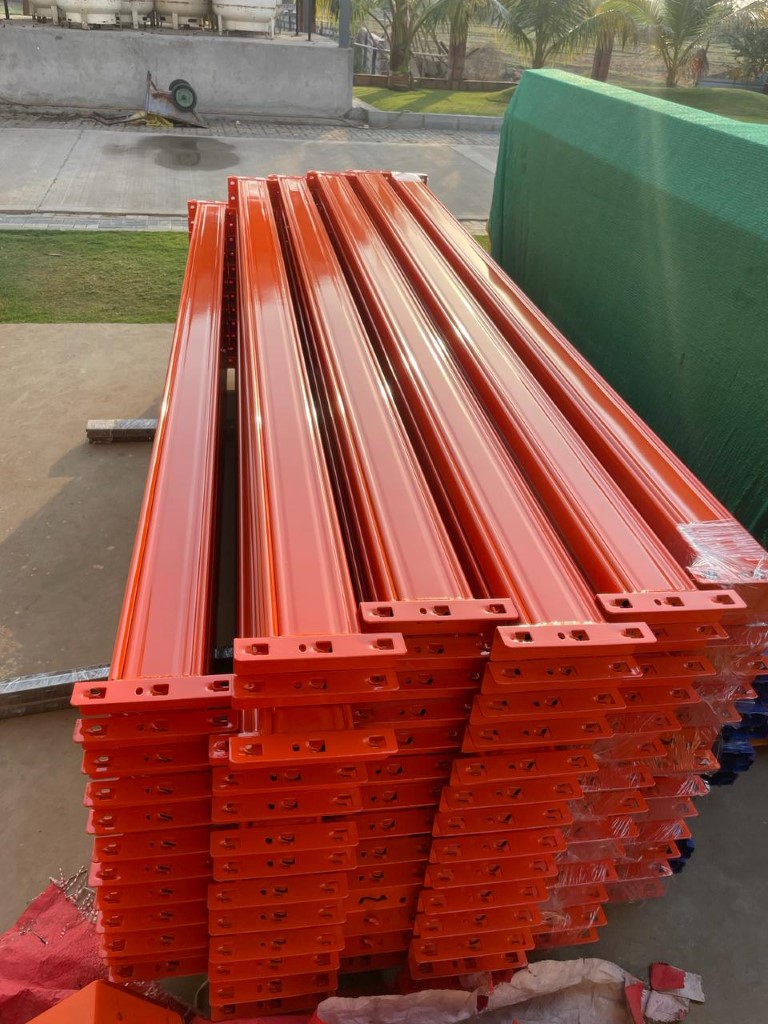

Load Beam
Load Beam

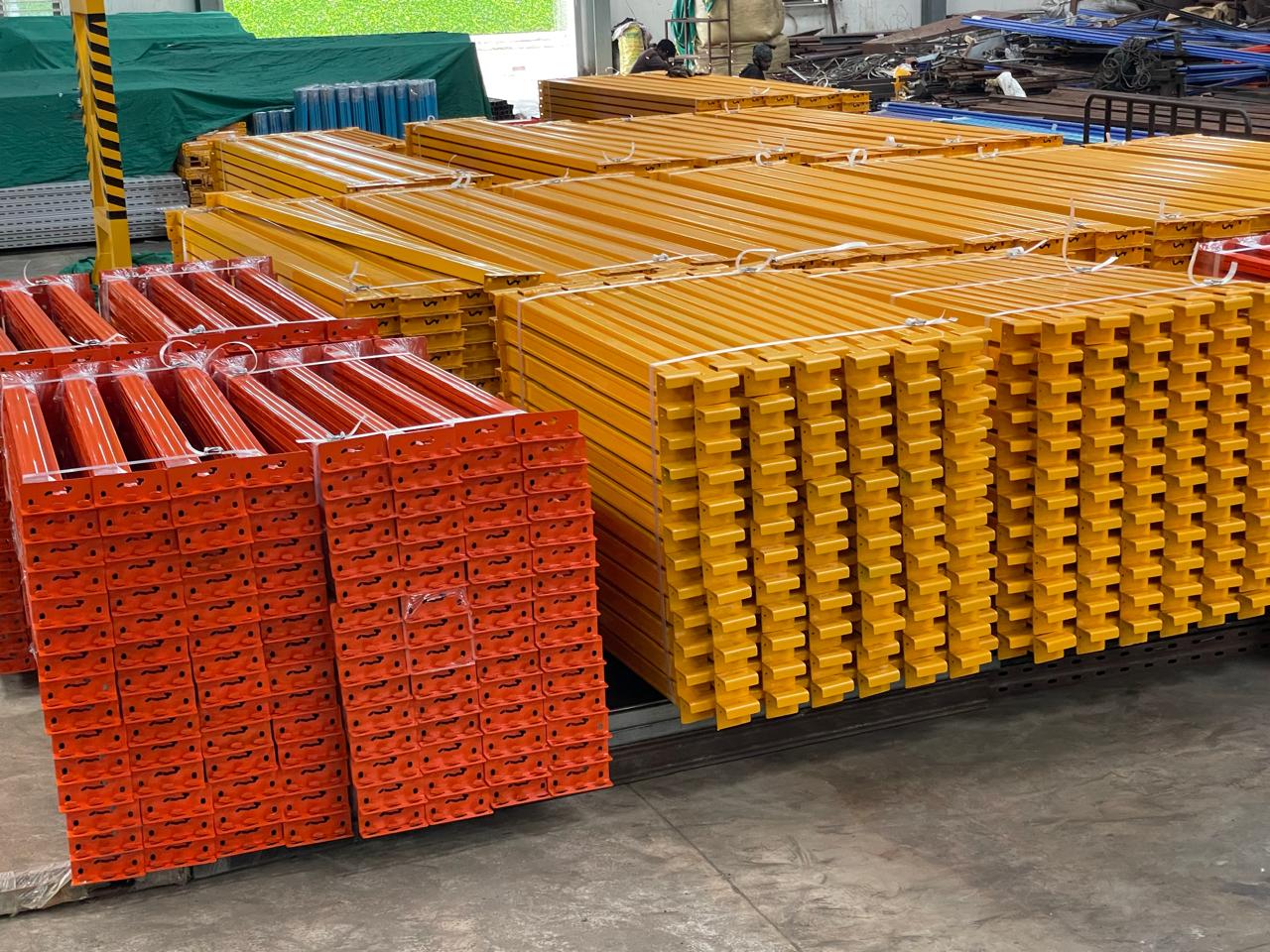

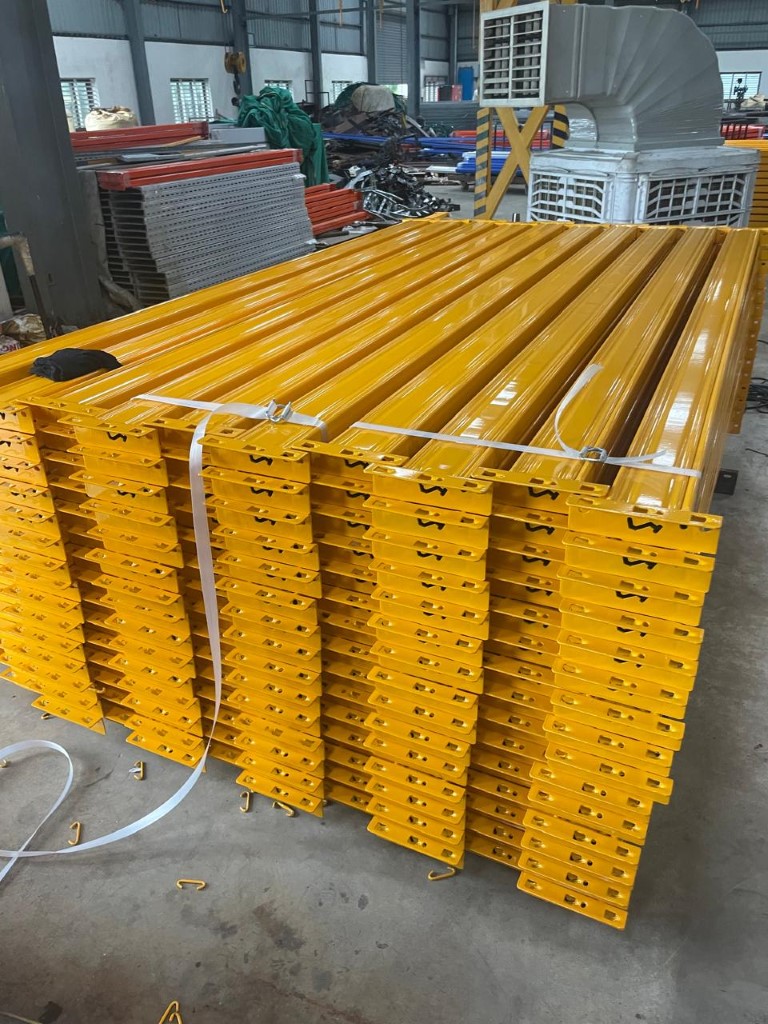

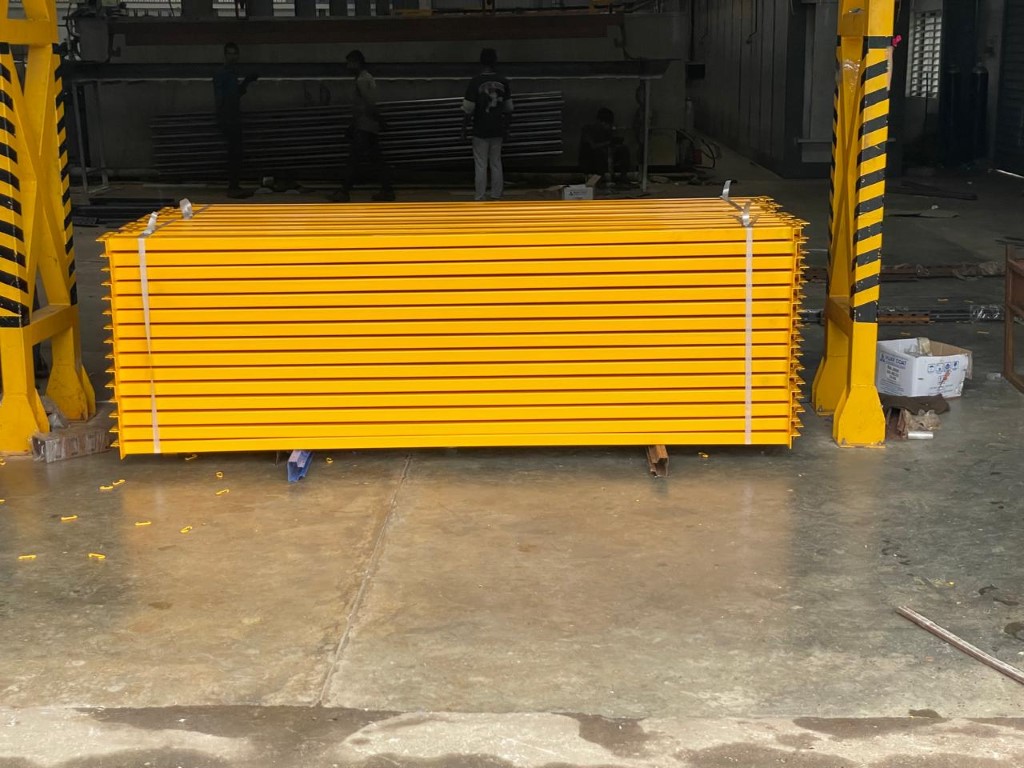

STALWART heavy-duty beams are roll-formed from high-tensile steel to provide excellent load distribution and span strength. Designed for pallet racking systems, they safely support heavy and uniformly distributed loads. Precision connectors ensure secure locking with uprights, offering high stability, easy height adjustability, and long-lasting performance in demanding warehouse environments.

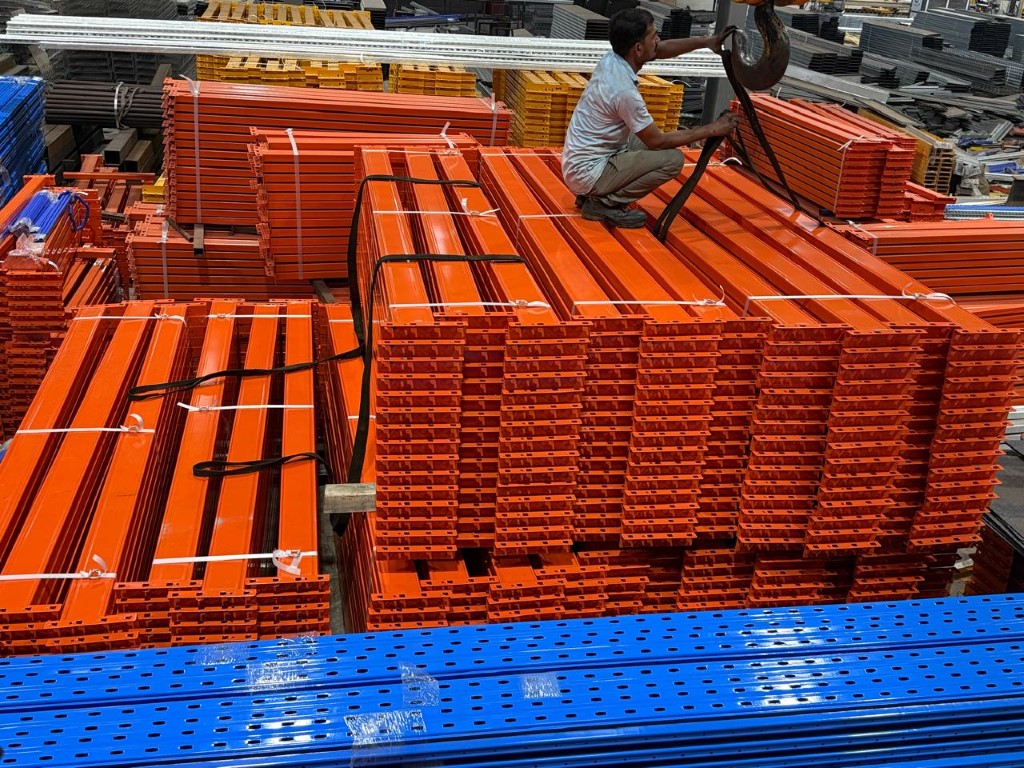

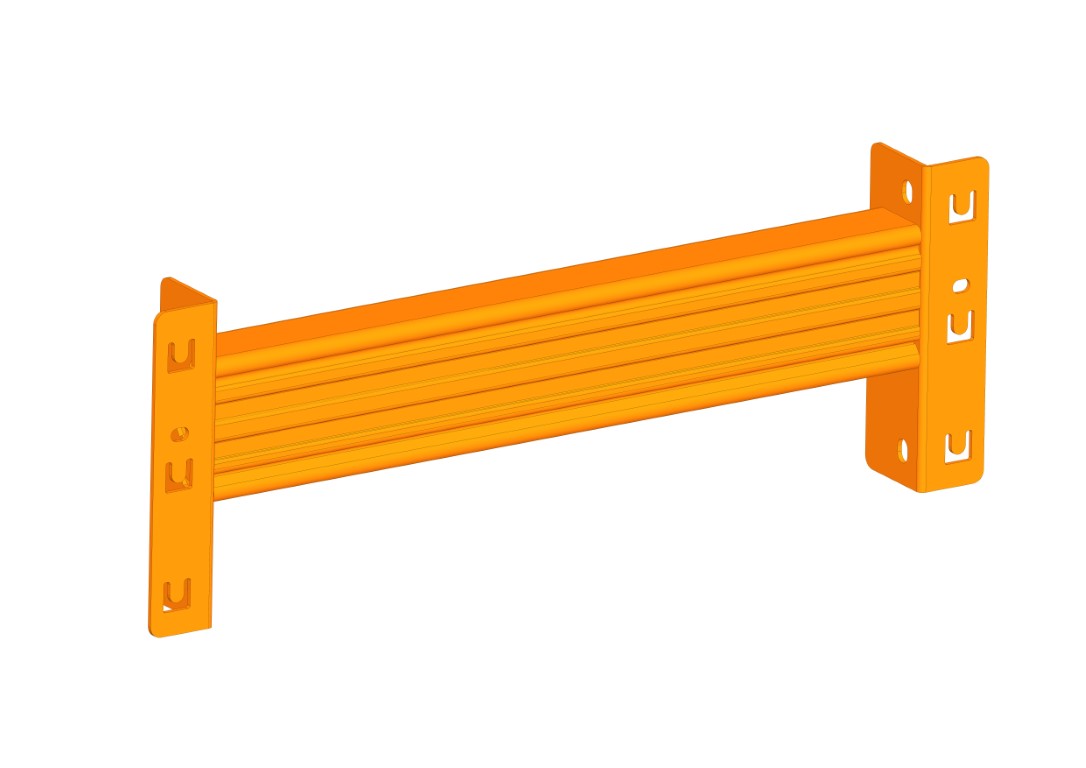

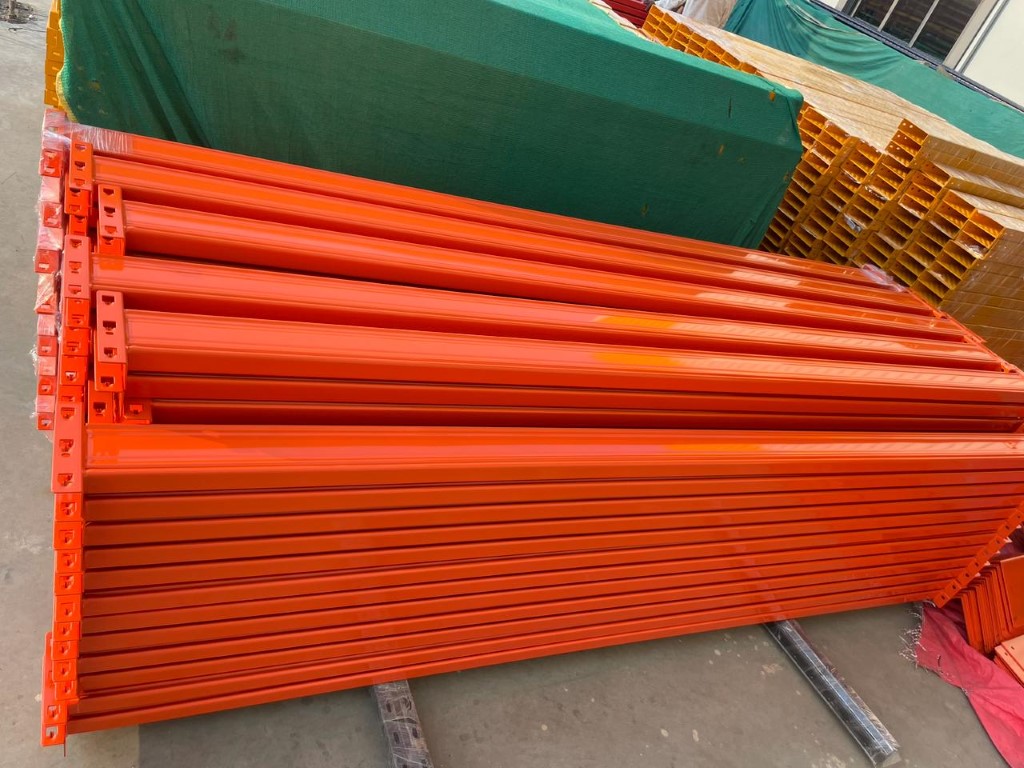

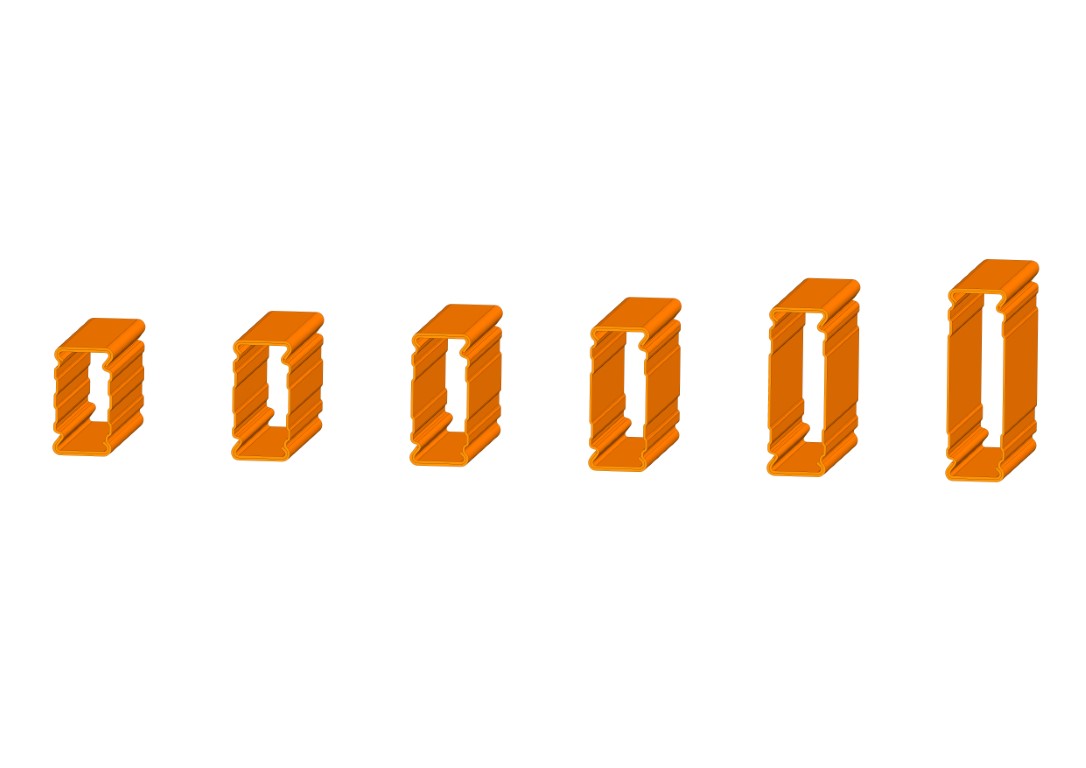

STALWART BOXBEAM – 34 SERIES
 |
 |
 |
 |
 |
 |
| Style : Box Beam | Style : Box Beam | Style : Box Beam | Style : Box Beam | Style : Box Beam | Style : Box Beam |
| Size : 90 x 50mm | Size : 100 x 50mm | Size : 110 x 50mm | Size : 120 x 50mm | Size : 140 x 50mm | Size : 160 x 50mm |
| Fold : 34 | Fold : 34 | Fold : 34 | Fold : 34 | Fold : 34 | Fold : 34 |
Box Beam Technical Specifications
Material & Finish
| Parameter | Specification |
|---|---|
| Material | High-tensile cold-rolled steel |
| Beam Profile | Closed Box Section |
| Surface Finish | Powder Coated |
| Color | Standard Orange / Custom RAL |
| Connection | Hook-type beam connector with safety lock |
Applications - Box Beam
- Heavy Duty Pallet Racking
- Bulk Storage Systems
- High-Bay Warehouses
- Multi-Tier Storage Structures
| Section(MM) | 90x50x1.5mm | 100x50x1.5mm | 110x50x1.5mm | 120x50x1.5mm | 140x50x1.5mm | 160x50x1.5mm |
|---|---|---|---|---|---|---|
| 1800 | 3000 | 5000 | / | / | / | / |
| 2000 | 2400 | 4000 | w | / | / | / |
| 2300 | 1800 | 3000 | 3800 | 4500 | / | / |
| 2700 | 1300 | 2200 | 2800 | 3400 | 4800 | / |
| 3000 | 900 | 1600 | 2000 | 2500 | 3800 | 4500 |
| 3300 | / | 1300 | 1500 | 2000 | 3000 | 4000 |
| 3600 | / | 1000 | 1200 | 1700 | 2500 | 3500 |
| 3900 | / | / | 1000 | 1400 | 2000 | 3000 |

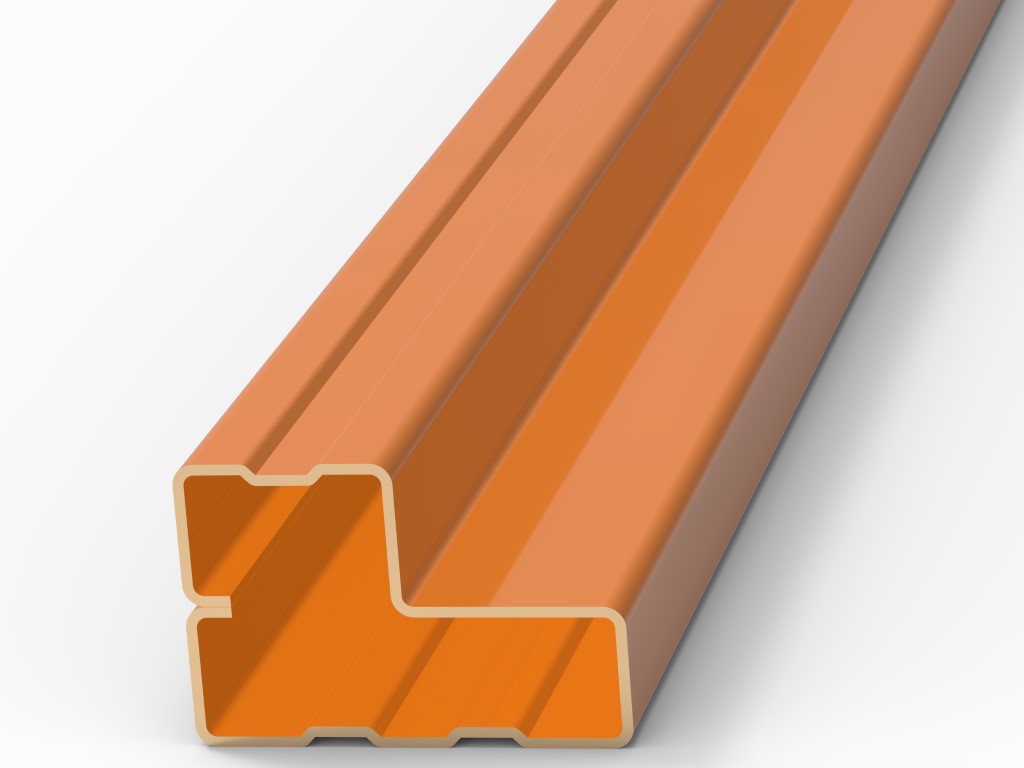

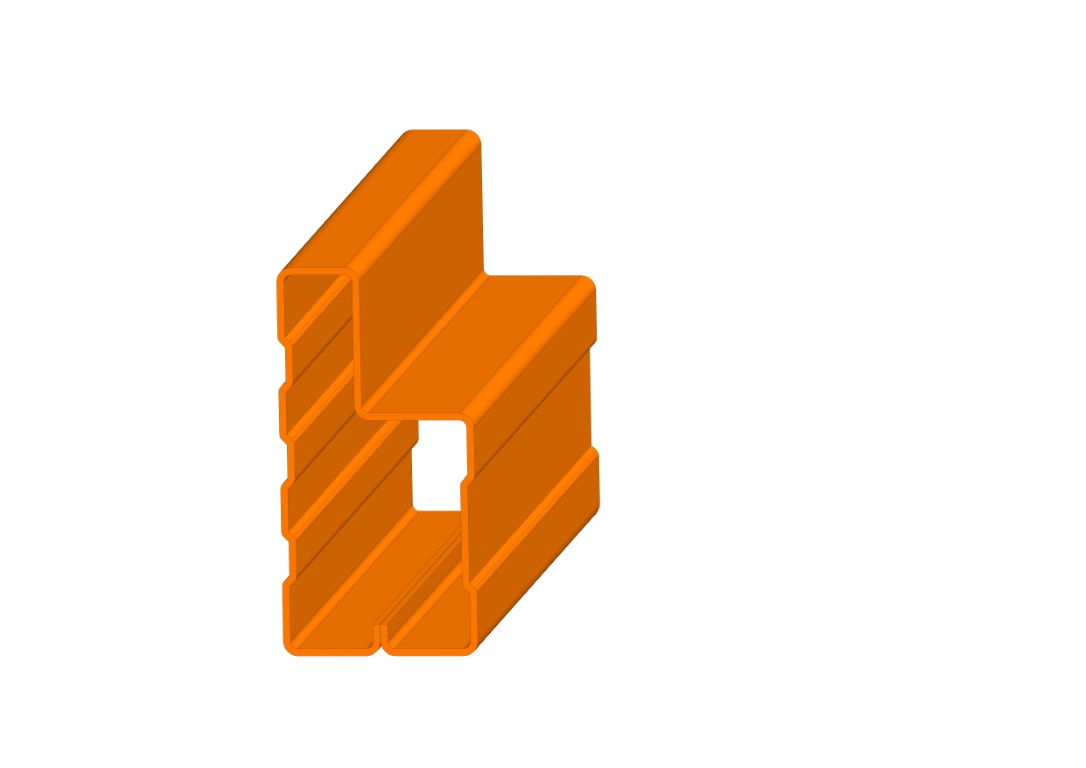

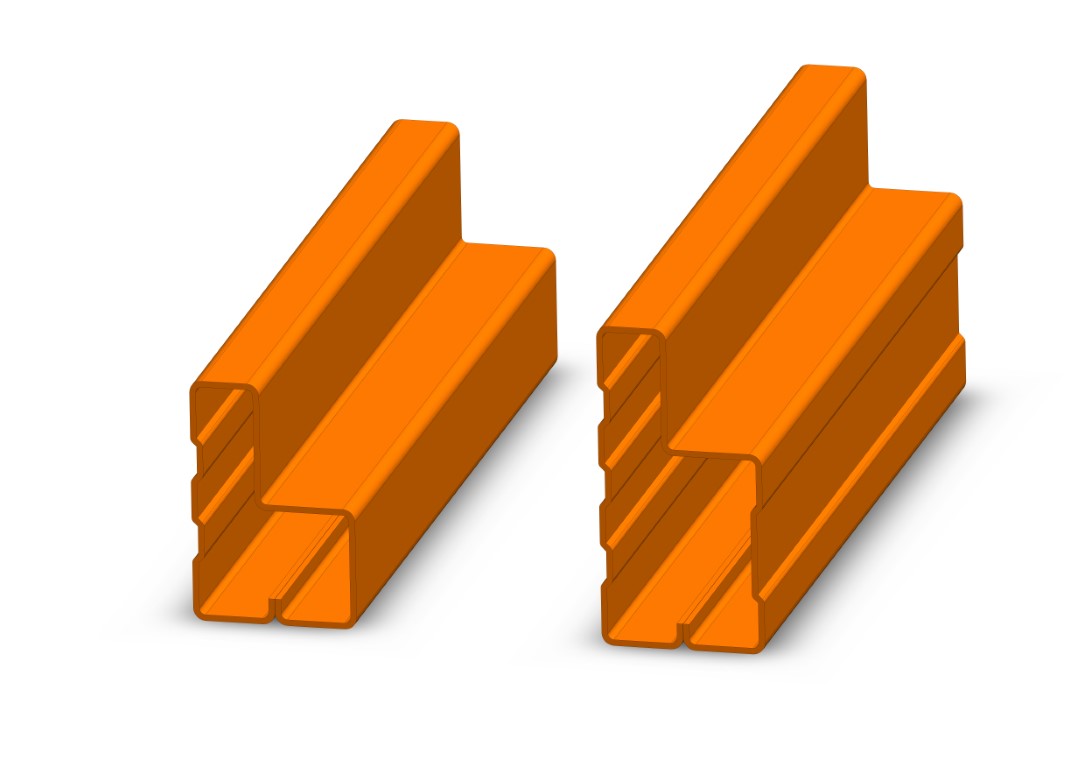

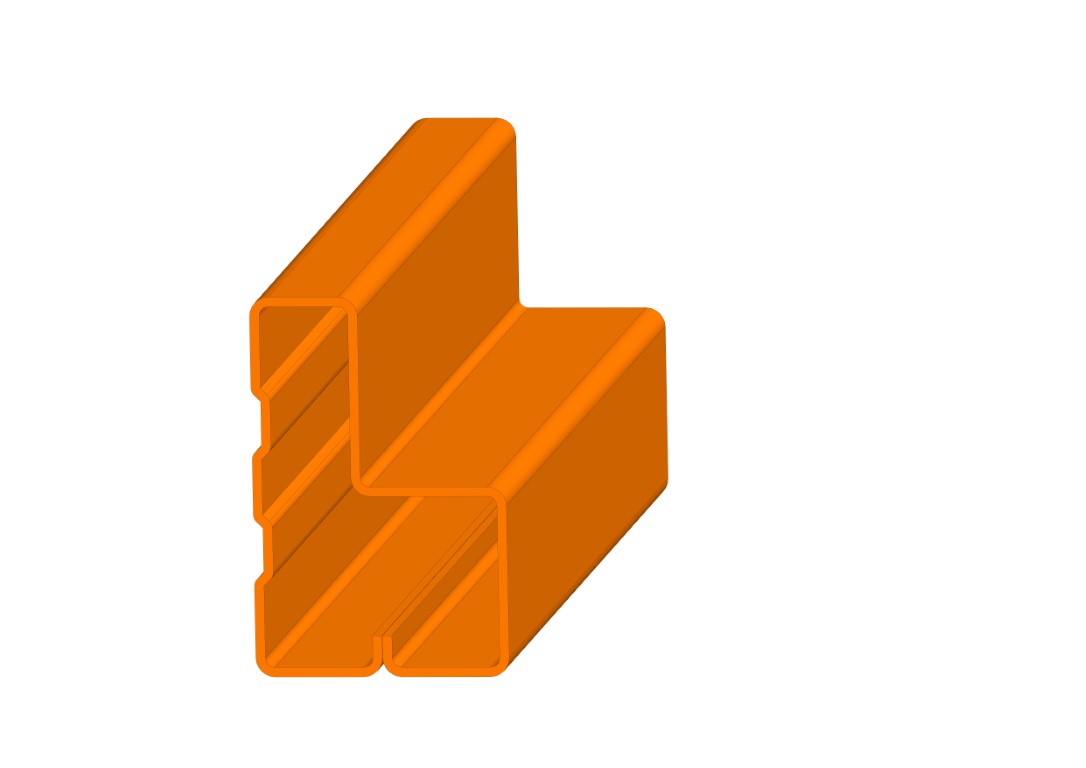

STALWART STEPFIT SECTIONS – 28 SERIES
 |  |
| Style : Step Beam | Style : Step Beam |
| Size : 60 x 40mm | Size : 80 x 40mm |
| Fold : 28 | Fold : 28 |
| Step : 30mm | Step : 30mm |
Step Beam – Material & Finish
Applications – Step Beam
- Pallet Racking with Wooden Decking
- Wire Mesh Deck Storage
- Carton & Box Storage
- Medium to Heavy Duty Warehouse Storage
Material & Finish
| Parameter | Specification |
|---|---|
| Material | High-tensile cold-rolled steel |
| Beam Profile | Step Section |
| Surface Finish | Powder Coated |
| Color | Standard Orange / Custom RAL |
| Decking Support | Wooden Panel / Wire Mesh Deck |
| Size (mm) | Thickness of upright(mm) | Frame capacity per bay(kg) |
|---|---|---|
| 60 x 40mm | 1.5 | 5000 |
| 1.8 | Â | |
| 2 | 8000 | |
| 80 x 40mm | 1.5 | 8500 |
| 1.8 | 10000 | |
| 2 | 12500 |
