Decking Panels
Decking Panels
STALWART Decking Panels are engineered to provide a solid, safe, and evenly distributed load surface across pallet racking beams. Designed for both Step Beam and Box Beam systems, these panels allow storage of cartons, bins, loose items, and non-palletized loads while improving safety and load stability.

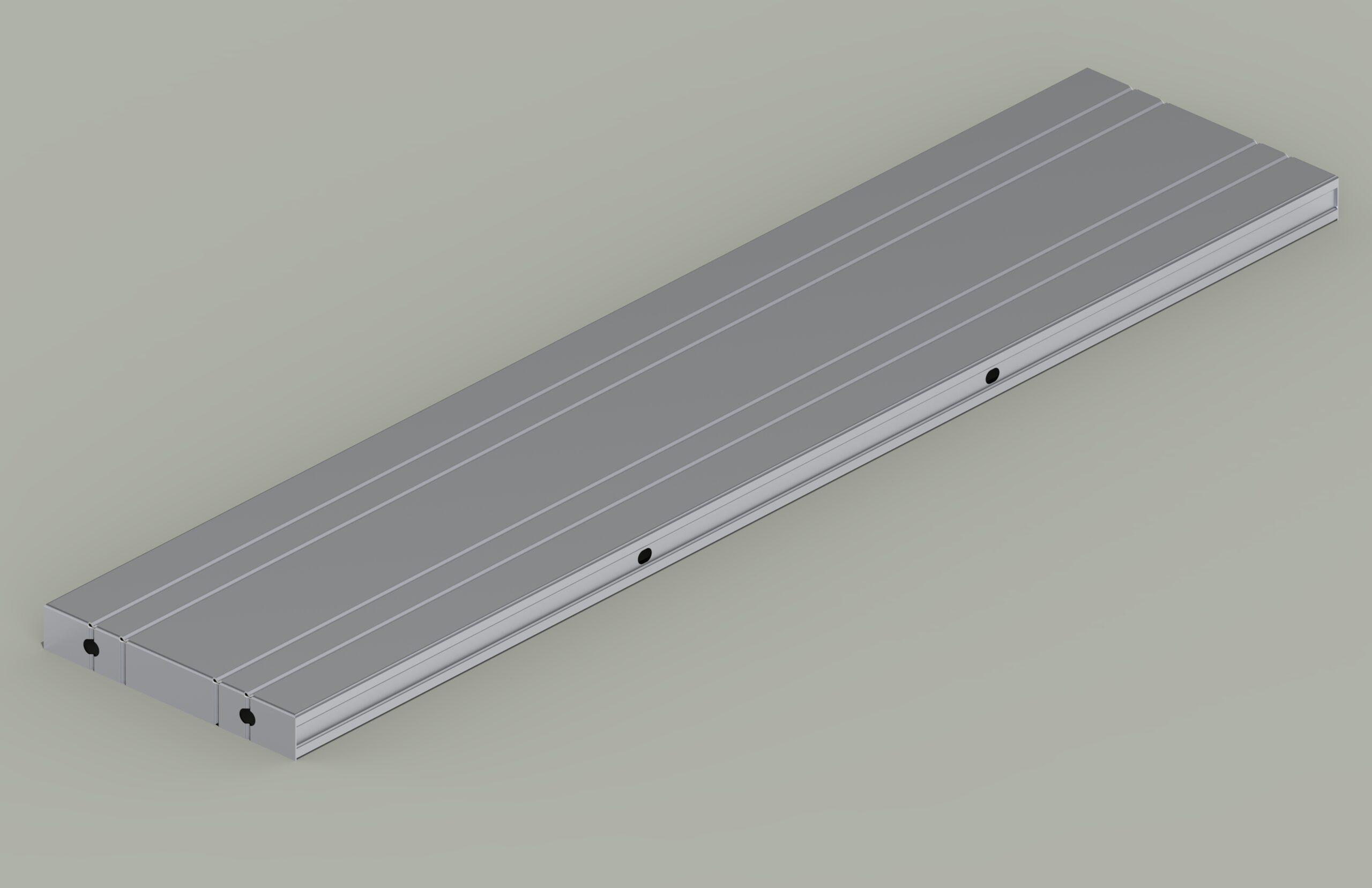

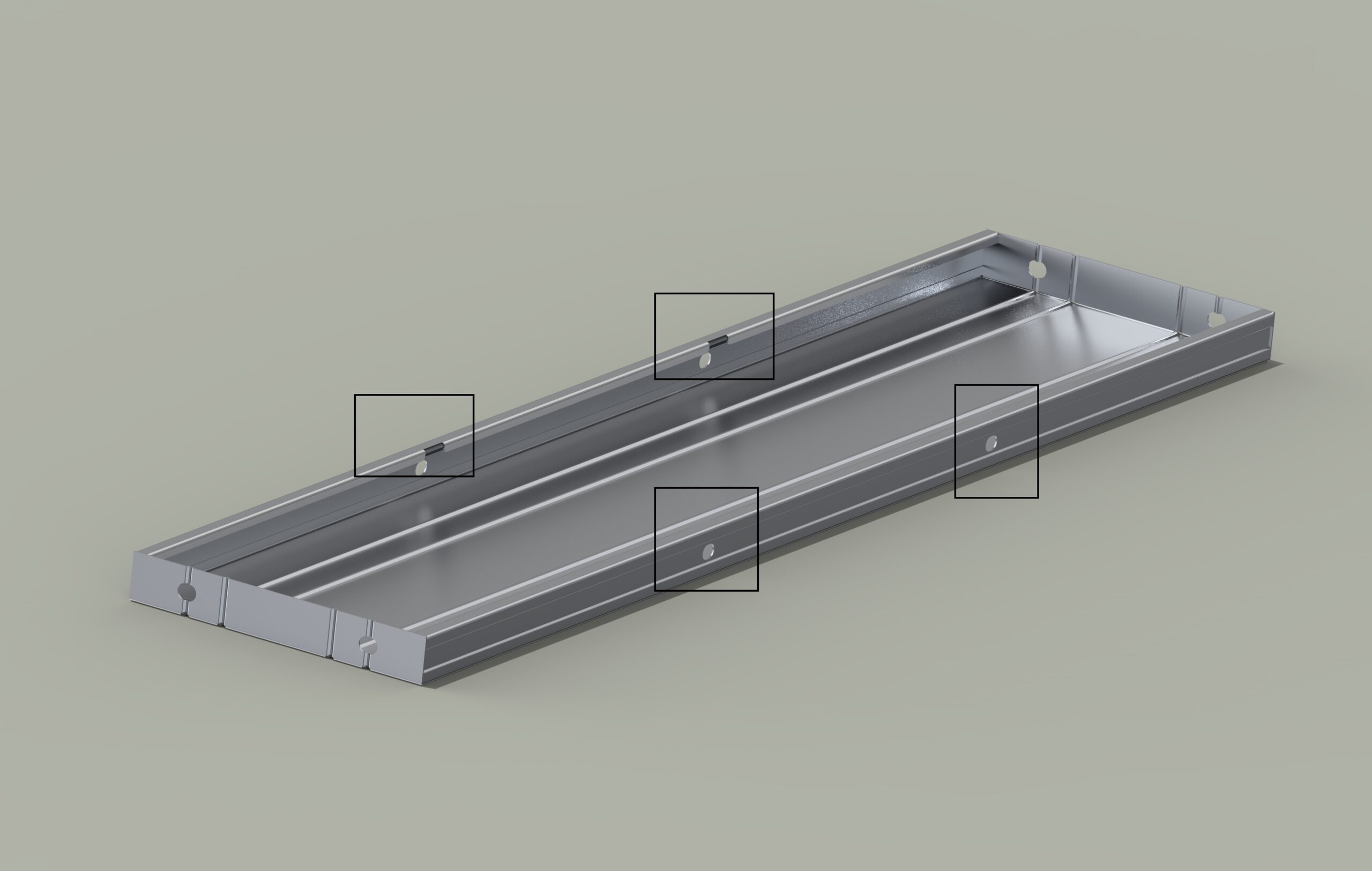

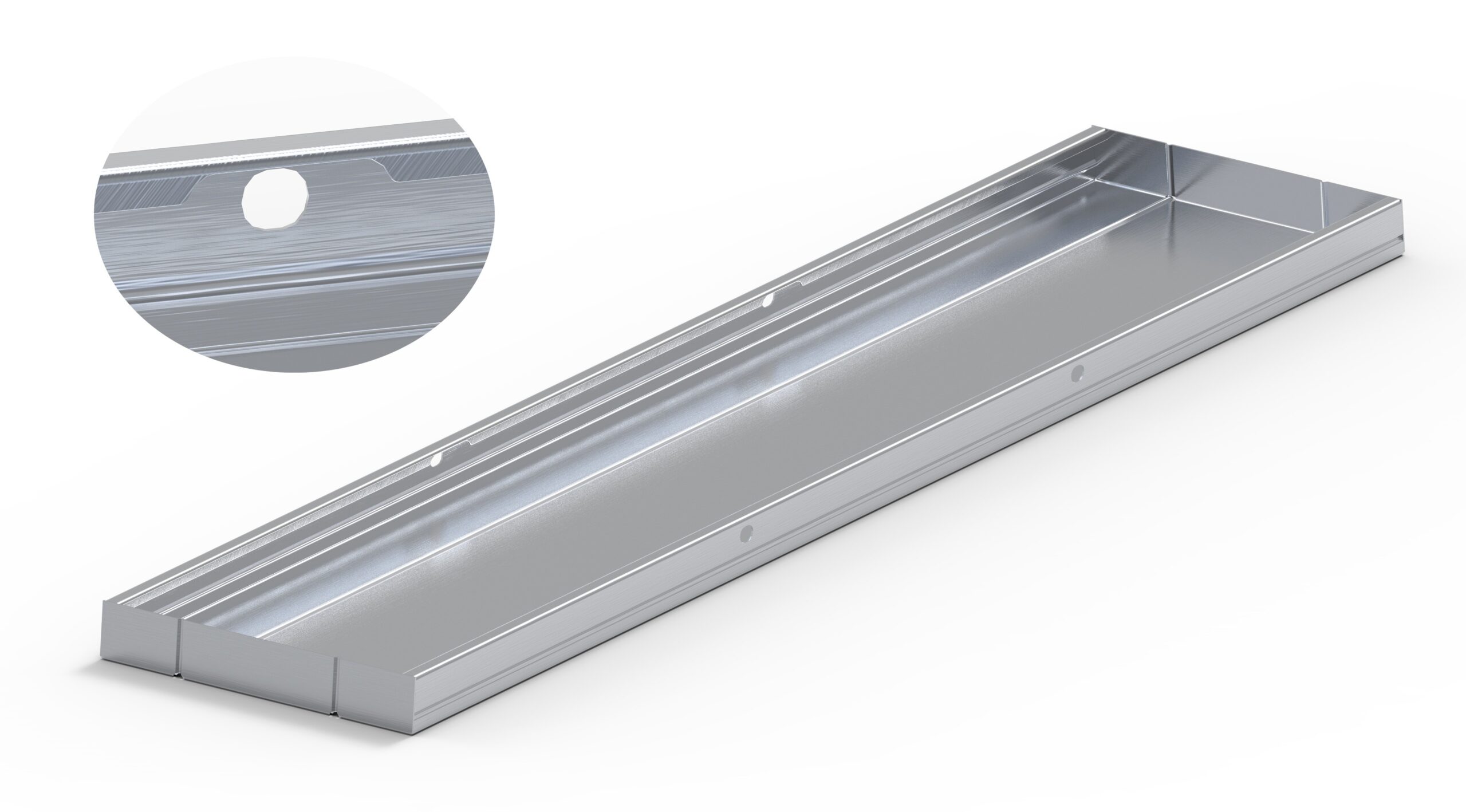

Decking Panel for Stepfit Beam
- Designed to sit securely on the integrated step of step beams
- No additional support angles required
- Quick drop-in installation
- Ideal for selective pallet racking systems
Key Compatibility
- Step Beam: 60×40 mm, 80×40 mm
- Step Height: 30 mm

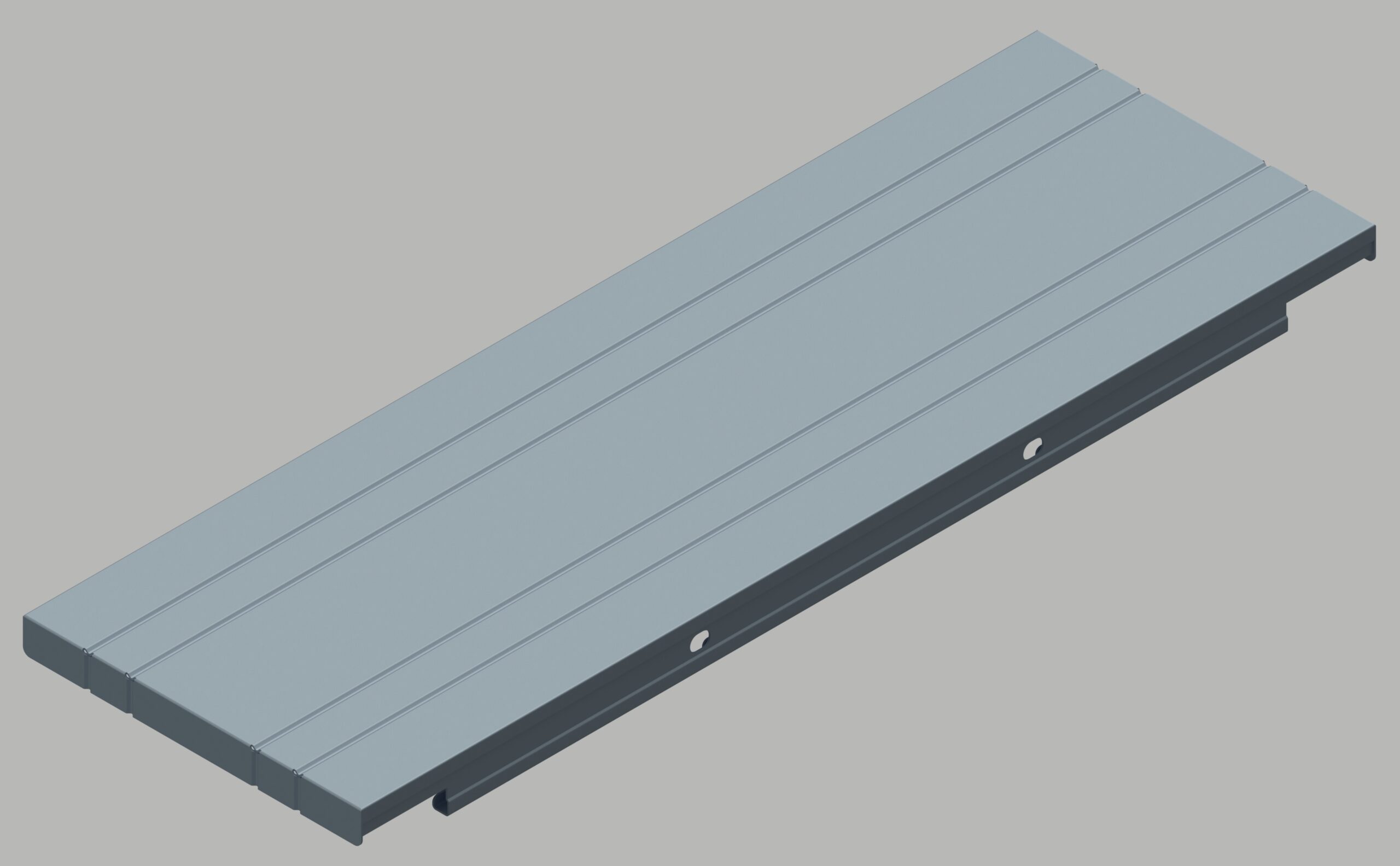

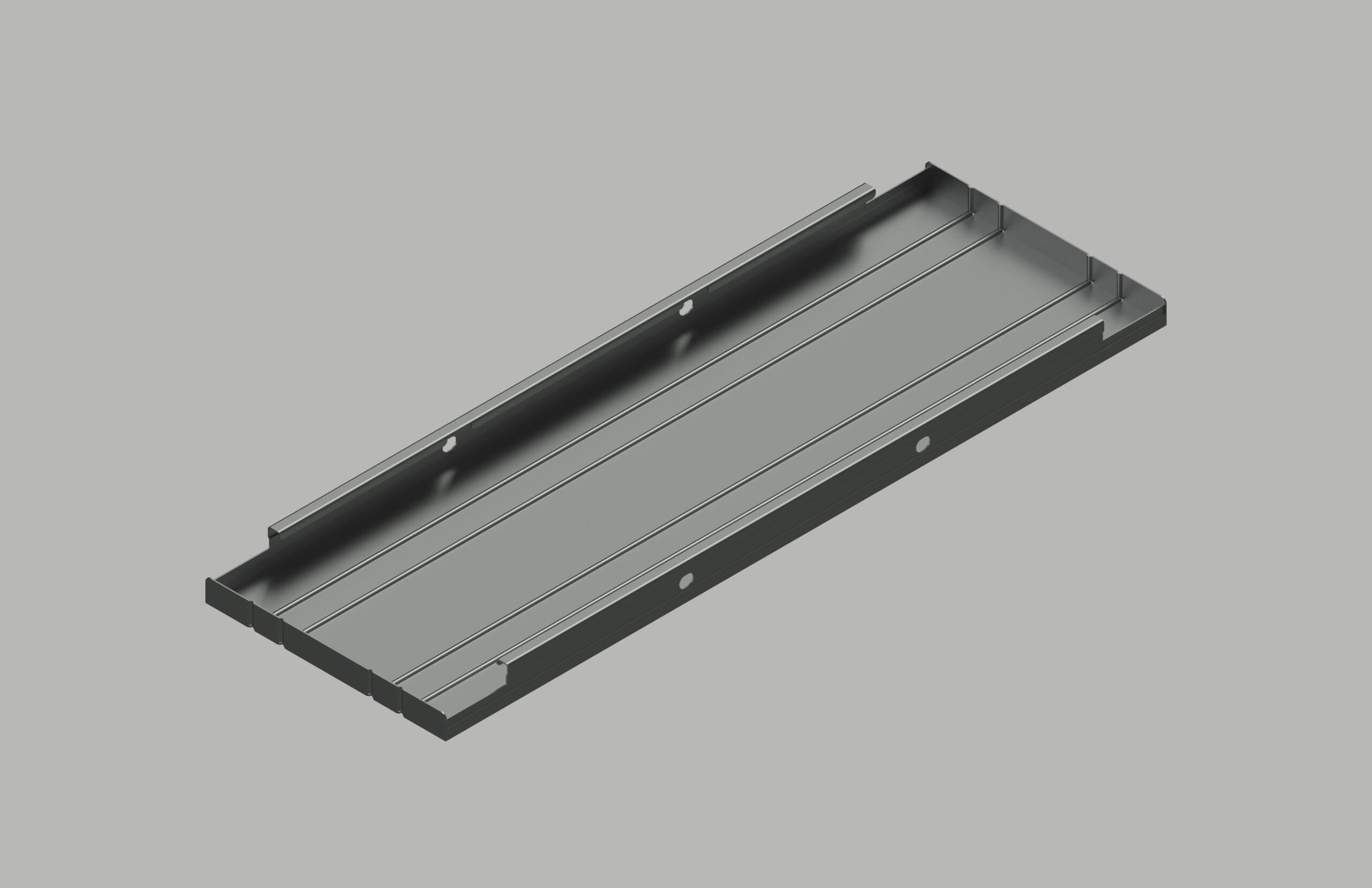

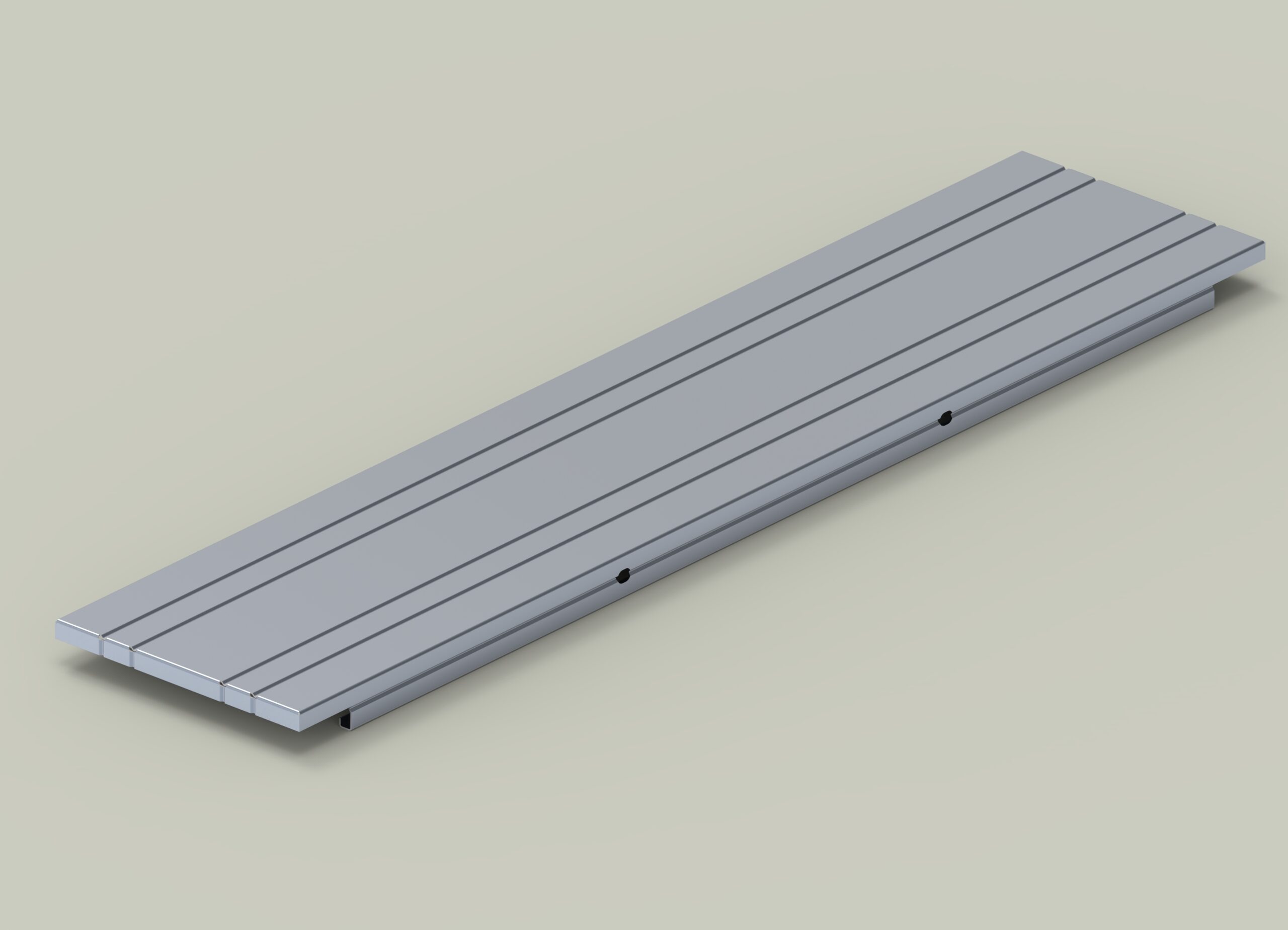

Decking Panel for Box Beam
- Designed to rest on box beams with locking or support lips
- Compatible with standard box beam sections
- Provides uniform load transfer to beams
Key Compatibility
- Box Beam Sizes: 90×50, 100×50, 110×50, 120×50, 140×50, 160×50 mm
Material & Finish
- Material: High-strength cold-rolled steel
- Thickness Range: 0.8 mm – 1.5 mm
- Finish Options:

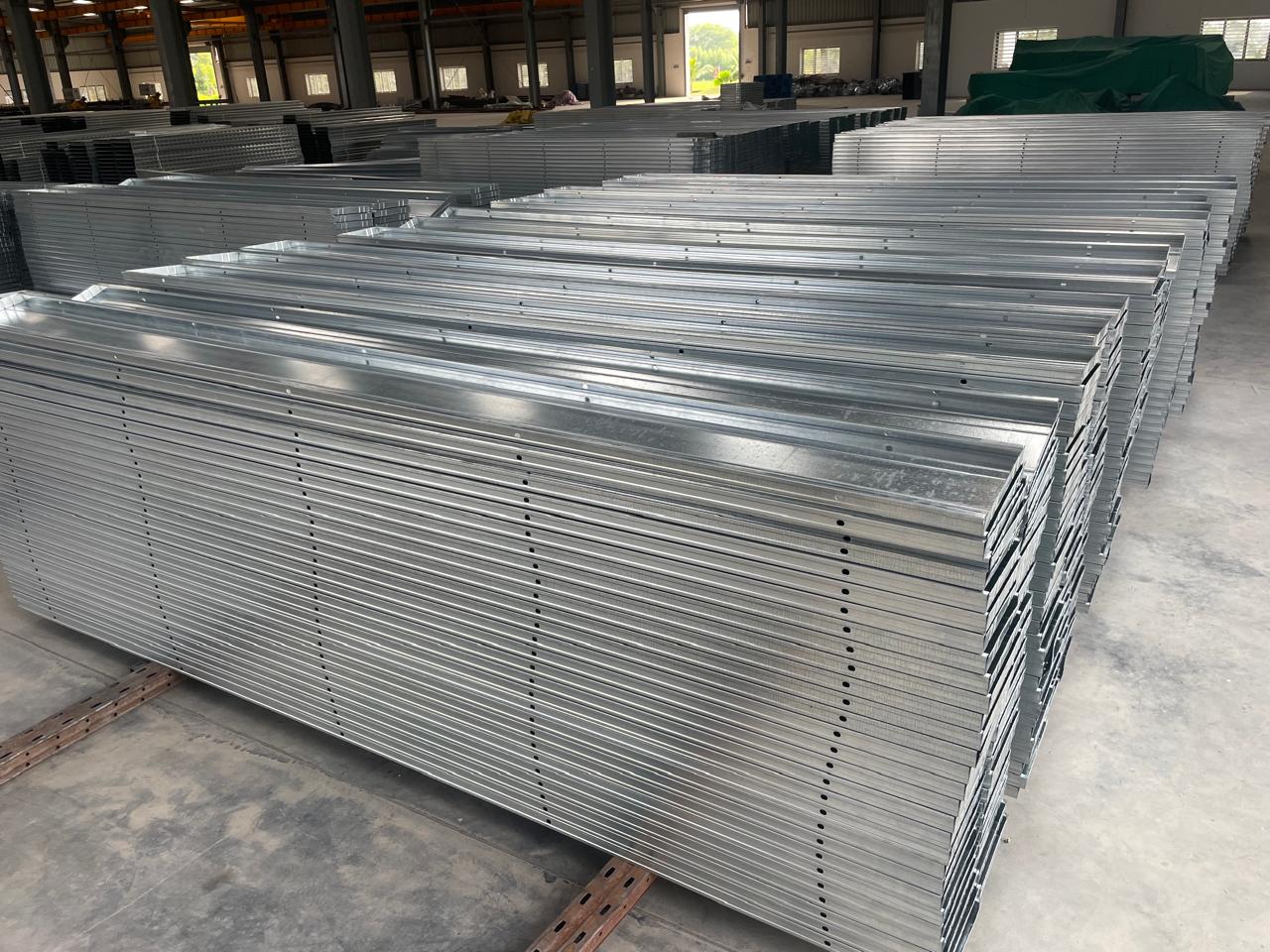

- Pre-galvanized
- Powder coated
Key Features
- Uniform load distribution
- Anti-slip ribbed surface
- Ventilation holes for dust & water drainage
- Fire-safety compliant open design
- Easy removal and replacement
Stalwart Decking Panel - 900 Series
| Width | Depth | Available Thickness | Load Capacity |
|---|---|---|---|
| 900 | 300 | 0.8mm - 1.5mm | 30kg to 100kg |
| 900 | 375 | ||
| 900 | 450 | ||
| 900 | 600 | ||
| 900 | 900 |
Stalwart Decking Panel - 1000 Series
| Width | Depth | Available Thickness | Load Capacity |
|---|---|---|---|
| 1000 | 300 | 0.8mm - 1.5mm | 30kg to 100kg |
| 1000 | 375 | ||
| 1000 | 450 | ||
| 1000 | 600 | ||
| 1000 | 900 |
Stalwart Decking Panel - 1200 Series
| Width | Depth | Available Thickness | Load Capacity |
|---|---|---|---|
| 1200 | 300 | 0.8mm - 1.5mm | 30kg to 100kg |
| 1200 | 375 | ||
| 1200 | 450 | ||
| 1200 | 600 | ||
| 1200 | 900 |
Application Industry

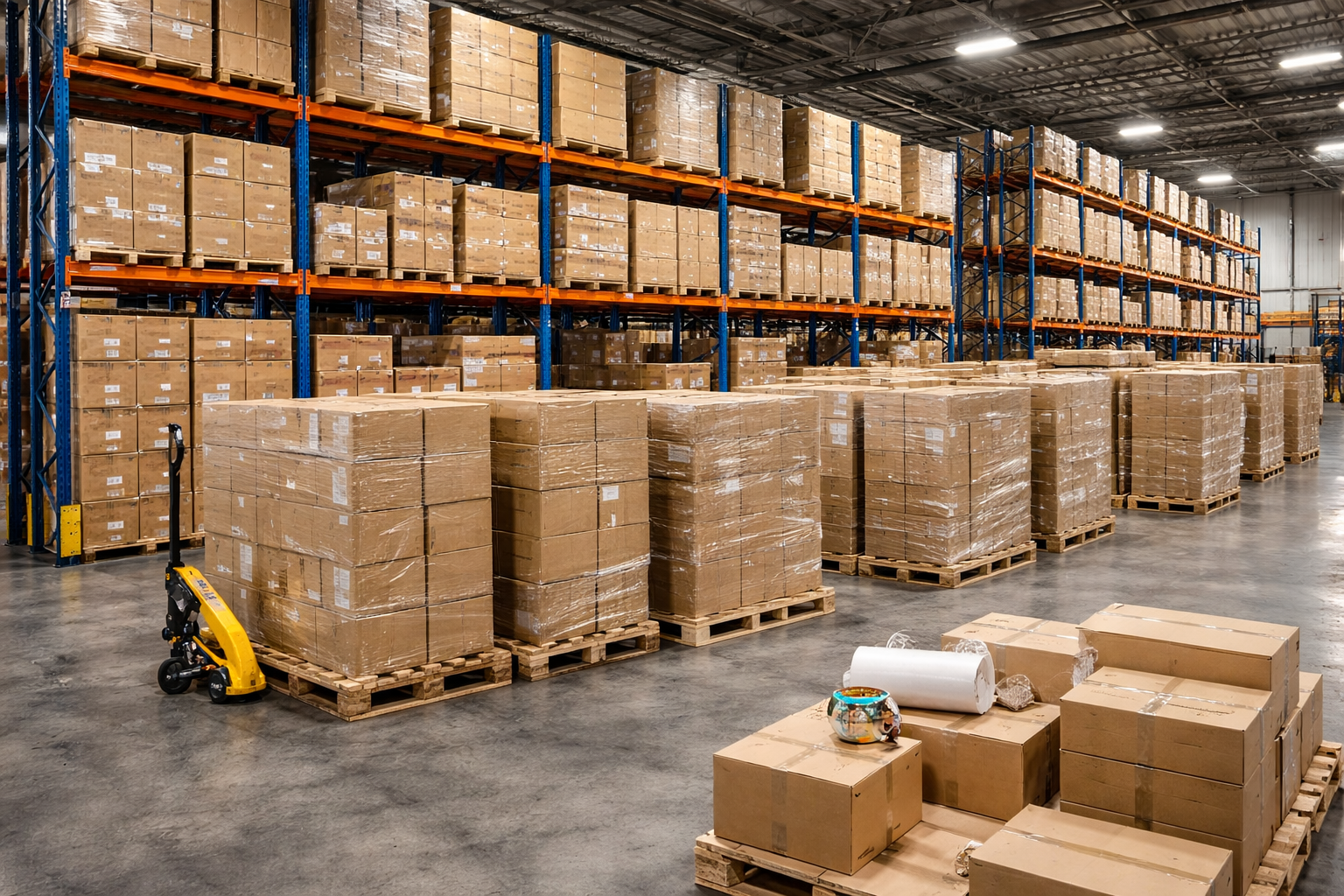

Carton Storage

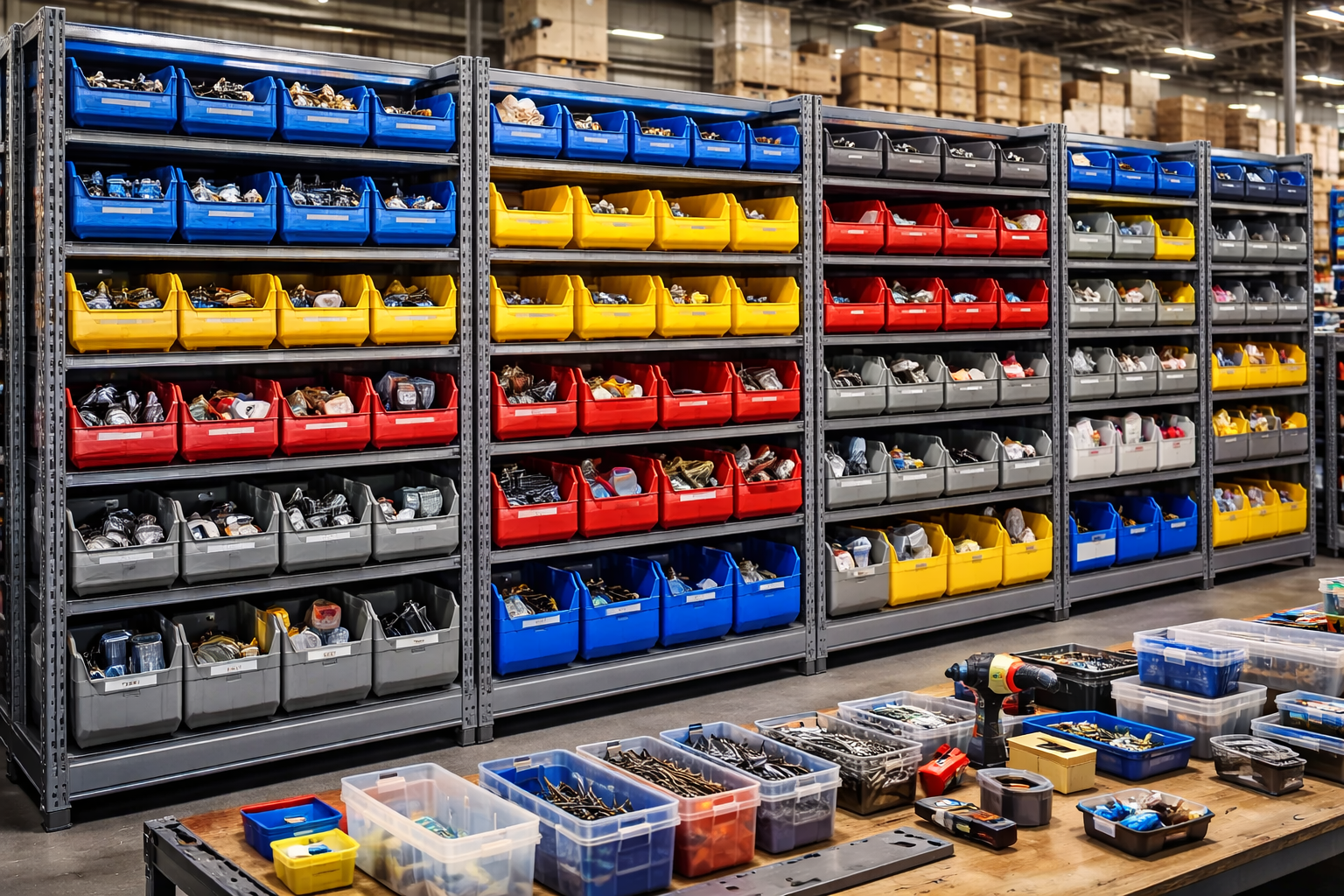

Bin Storage

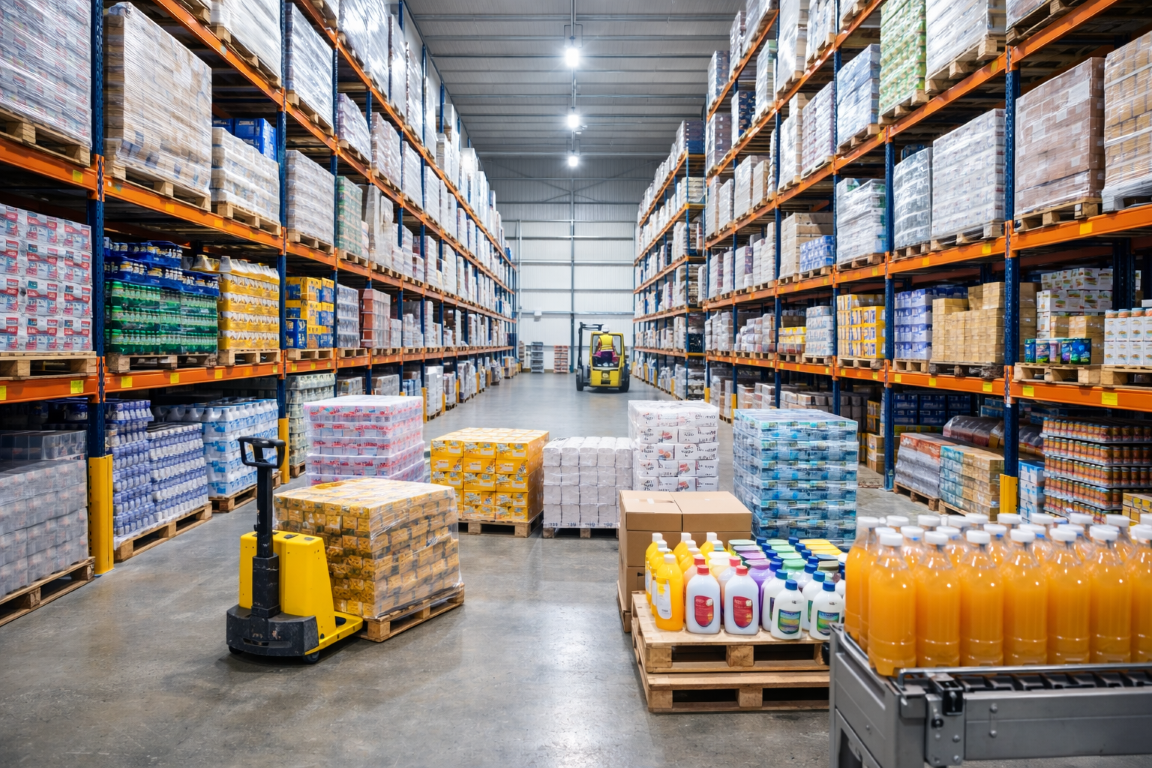

FMCG warehouses
Automotive & industrial storage
